| Wilo is a German brand which is known worldwide. Its pumps and puump systems are widely used in commercial buildings, municipal installations, industrial processes and also in private homes. In building service, Wilo offers reliable pumps and pump systems for both residential houses and commercial facilities in the area of air-conditioning, cooling, water supply and sewage disposal. |
| |
|

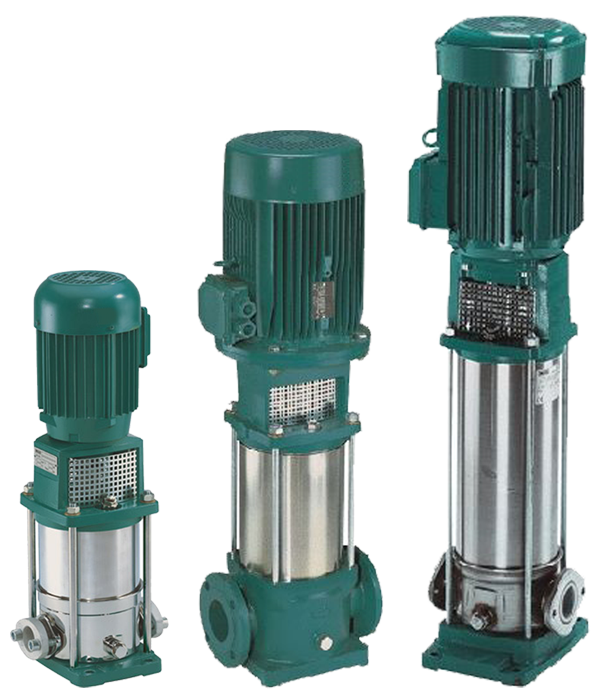

| MVI Series |
| |
|
| MVI series are non-self-priming, multistage high-pressure centrifugal pumps in vertical design with in-line connections. |
| |
|
| • |
Features: |
| |
| ▸ |
High pressure by multi-stage impeller |
| ▸ |
Easy maintenance by bidirectional mechanical seal |
| ▸ |
CQC certification |
| ▸ |
Casing: stainless steel |
| ▸ |
Impeller: stainless steel |
| ▸ |
Shaft: stainless steel |
| ▸ |
Mechanical seal: carbon & silicon carbide, tungsten carbide |
|
| |
|
| • |
Applications: |
| |
| ▸ |
Water supply and pressure boosting |
| ▸ |
Hot water circulation and heating system |
| ▸ |
Air-conditioning systems |
| ▸ |
Industrial circulation systems |
| ▸ |
Washing and sprinkling systems |
| ▸ |
For various machinery |
|
| |
|
| • |
Specifications: |
| |
| ▸ |
Flow rate: up to 26 m3/h |
| ▸ |
Head: up to 230 m |
| ▸ |
Fluid temperature: -15 °C to +120 °C |
| ▸ |
Power: 0.37 kW to 7.5kW |
|
| |
|

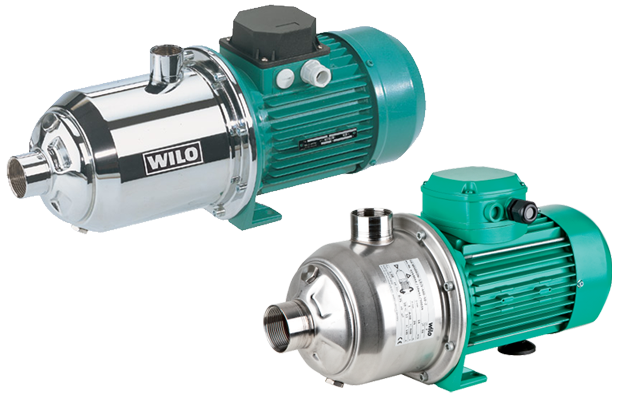

| MHI and MHIL Series |
| |
|
| MHI and MHIL series are non-self-priming, multistage centrifugal pumps in horizontal design. |
| |
|
| • |
Features: |
| |
| ▸ |
High pressure by multi-stage impeller |
| ▸ |
Easy maintenance by bidirectional mechanical seal |
| ▸ |
CQC certification |
| ▸ |
Casing: stainless steel for MHI series, cast iron for MHIL series |
| ▸ |
Impeller: stainless steel |
| ▸ |
Shaft: stainless steel |
| ▸ |
Mechanical seal: carbon & ceramic |
|
| |
|
| • |
Applications: |
| |
| ▸ |
Water supply and pressure boosting |
| ▸ |
Hot water circulation and heating system |
| ▸ |
Air-conditioning systems |
| ▸ |
Industrial circulation systems |
| ▸ |
Washing and sprinkling systems |
| ▸ |
For various machinery |
|
| |
|
| • |
Specifications: |
| |
| ▸ |
Flow rate: up to 26 m3/h |
| ▸ |
Head: up to 70 m |
| ▸ |
Fluid temperature: -15 °C to +110 °C |
| ▸ |
Power: 0.37 kW to 2.5 kW |
|
| |
|
| |
|
