| SFA is the leading brand for small-bore sanitary macerators and pumps. SFA macerators provides the ideal solution for installing sanitary appliances almost anywhere with minimum of construction work. SFA macerators and pumps allow you to install complete WC and shower facilities where it is impossible to do so using traditional plumbing methods which usaully require intallation locations with downhill drainage, gravity evacuated waste and proximity to main waste pipe. |
| |
|
| SANITOP |
| |
|
| SANITOP can be used to create an additional half bathroom. This unit offers a quiet macerating pumping system that is ideal to install a toilet with a wash basin. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: water closet and wash basin |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 22/28/32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 400 W |
| ▸ |
Weight: 5.7 kg |
|
| |
|

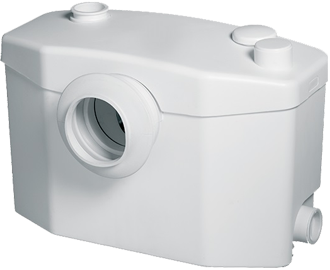

| SANIPRO XR |
| |
|
| SANIPRO XR can be used to add a complete bathroom. It takes waste from a toilet, shower, wash basin and bidet. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: water closet, wash basin, bidet and shower |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 22/28/32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 400 W |
| ▸ |
Weight: 7 kg |
|
| |
|

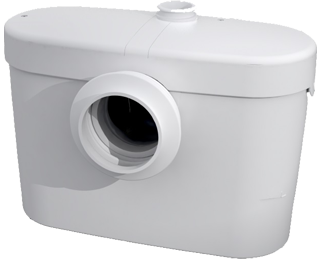

| SANIACCESS 1 |
| |
|
| SANIACCESS 1 is designed to provide easy access where just one water closet is needed and is suitable for new installation. Its convenient covers allow you to service and maintain the macerator without having to remove it. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: water closet |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 22/28/32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 400 W |
| ▸ |
Weight: 6.6 kg |
|
| |
|

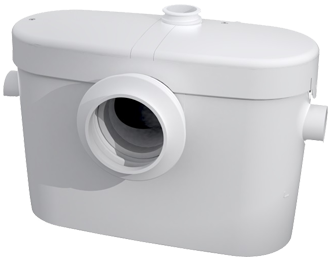

| SANIACCESS 2 |
| |
|
| With its small tank and two top inlets, SANIACCESS 2 can be used to pump out a toilet and a wash basin together. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: water closet and wash basin |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 22/28/32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 400 W |
| ▸ |
Weight: 6.8 kg |
|
| |
|

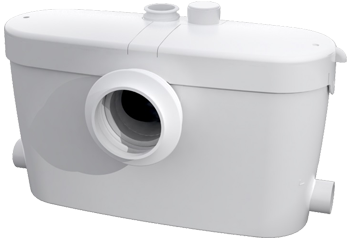

| SANIACCESS 3 |
| |
|
| SANIACCESS 3 is designed to provide easy access for an ensuite bathroom application. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: water closet, wash basin, bidet and shower |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 22/28/32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 400 W |
| ▸ |
Weight: 7.5 kg |
|
| |
|
| SANISPEED |
| |
|
| SANISPEED is ideal for light commercial environments. This powerful grey water pump can be used to evacuate grey waste water from shops cafes, offices, bars and even dental cabinets. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: wash basin, bidet, shower, bathtub, dishwasher, washing machine |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Maximum admissible waste water temperature: 75 °C (max 5 min) |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 400 W |
| ▸ |
Weight: 6.4 kg |
|
| |
|

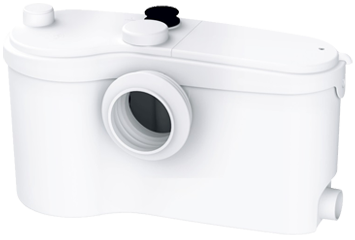

| SANIBEST Pro |
| |
|
| SANIBEST Pro is a heavy duty macerator suitable for intensive use in public or commercial environments. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: water closet, wash basin, bidet and shower |
| ▸ |
Inlet pipework: 40 mm |
| ▸ |
Recommended waste pipe diameter: 22/28/32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 1100 W |
| ▸ |
Weight: 12 kg |
|
| |
|

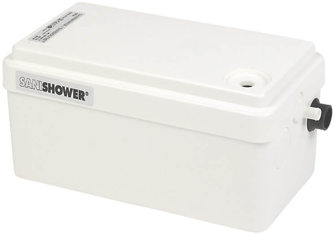

| SANISHOWER |
| |
|
| With its small size, SANISHOWER is suitable to be installed underneath a shower tray for medium-duty applications. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: wash basin, bidet and shower |
| ▸ |
Inlet pipework: 32/40 mm |
| ▸ |
Recommended waste pipe diameter: 32 mm |
| ▸ |
Normal operating temperature: 35 °C |
| ▸ |
Index of protection: IP44 |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 250 W |
| ▸ |
Weight: 3.5 kg |
|
| |
|
| SANICONDENS Clim Deco |
| |
|
| The SANICONDENS Clima Deco is an air conditioner condensate lift pump. With its clean lines and small sizes, the pump fits easily into any type of installation. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Posssible connection: air conditioner of refrigeration capacity of 10kW or less |
| ▸ |
Discharge pipework: 8/10 mm |
| ▸ |
Maximum flow rate: 12 L/h |
| ▸ |
Maximum vertical discharge: 6 m |
| ▸ |
Electrical power supply: 220-240V/50Hz |
| ▸ |
Motor power rating: 16 W |
| ▸ |
Index of protection: IP24 |
| ▸ |
Weight: 2 kg |
|
| |
|
| SANIALARM |
| |
|
| The SANIALARM has a level pressure switch that triggers an alarm fixed on the top of a unit if the volume of water exceeds the maximum allowed level. The alarm emits a continuous warning sound, until it is switched off and the problem is rectified. It helps protect against flooding. |
| |
|
| • |
Specifications: |
| |
| ▸ |
Power: 2 x AAA batteries - 1.5V (not included) |
| ▸ |
Weight: 0.17 kg |
|
| |
|
| |
|
