| Our Pacchi brand offers many types of water pumps. Major categories include MH, JSP-S, CDLF and R95 series. |
| |
|

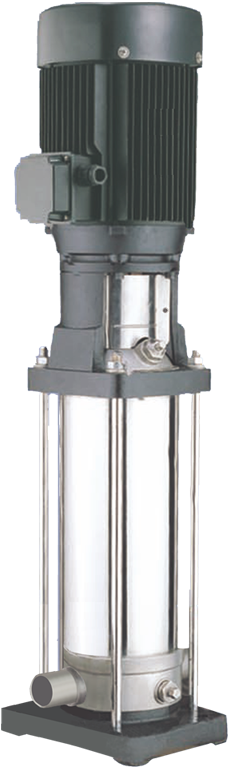

| CDLF Water Pump Series |
| |
|
| The CDLF series water pumps are non self-priming. They are multistage vertical centrifugal pumps and the base has in-line design suction and discharge ports. The pump body and the outer sleeve are fixed between the pump head by means of stay bolts. The pumped liquids must be thin and non-explosive liquids which do not contain solid particles. The liquid must not attack the pump materials chemically. When pumping liquid with a density or visocity higher than that of water, motor with corresponding higher outputs must be used, if required. They are used for liquid transfer, circulation and pressure boosting of clean water. |
| |
|
| • |
Features: |
| |
| ▸ |
Reliable and easy to maintain |
| ▸ |
Pump housing and impellers: AISI304 stainless steel |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow Rate: up to 40 m3/h |
| ▸ |
Head: up to 252 m |
| ▸ |
Liquid temperature: -15 °C to +110°C |
| ▸ |
Maximum ambient temperature: +40 °C |
|
| |
|
| R95 Water Pump Series |
| |
|
| The R95 series water pumps are electrical multistage submersible pumps for raising clean water from wells, primary water supplying tanks and reservoirs. The R95-S, R95-A, R95-VC and R95-BF series are in radial floating impellers. The R95-DF, R95-MA and R95-DG series are in semi-axial impellers. |
| |
|
| • |
Features: |
| |
| ▸ |
Impellers and diffusers are in plastic material (noryl) |
| ▸ |
Bearings are in ceramic/rubber lubricated by the water circulationl |
| ▸ |
Check valve is incorporated in the delivery body with threaded outlet. |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Maximum permissible quantity of suspended sand: 100 g/cm3 |
| ▸ |
Maximum submerged depth: 150 m |
| ▸ |
Maximum start per hour: 30 at regular intervals |
| ▸ |
Water temperature: 1 °C to 35 °C |
| ▸ |
Continuous or intermittent duty |
|
| |
|

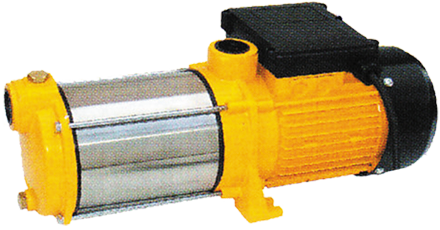

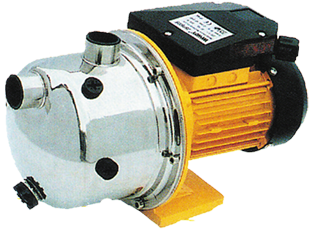

| MH and JSP-S Water Pump Series |
| |
|
| MH and JSP-S Pump Series are multistage horizontal centrifugal water pumps. Applications range from household pressure boosting to air-conditioning systems. |
| |
|
| • |
Features: |
| |
| ▸ |
Reliable, simple to use, light and quiet |
| ▸ |
Pump housing and impellers: AISI304 stainless steel |
| ▸ |
Pump shaft: AISI316 stainless steel |
|
| |
|
| • |
Operating conditions: |
| |
| ▸ |
Flow Rate: up to 5.4 m3/h |
| ▸ |
Head: up to 55 m |
| ▸ |
Maximum liquid temperature: +40 °C |
| ▸ |
Maximum ambient temperature: +40 °C |
|
| |
|
| |
|
