  Qualiway International Header
×




CV 38/2

Being simple and comfortable to use, vacuum brush CV 38/2 is quipped with many time-saving features to fulfill the highest requirements in terms of area performance, cleaning result and ergonomics.





1 / 8

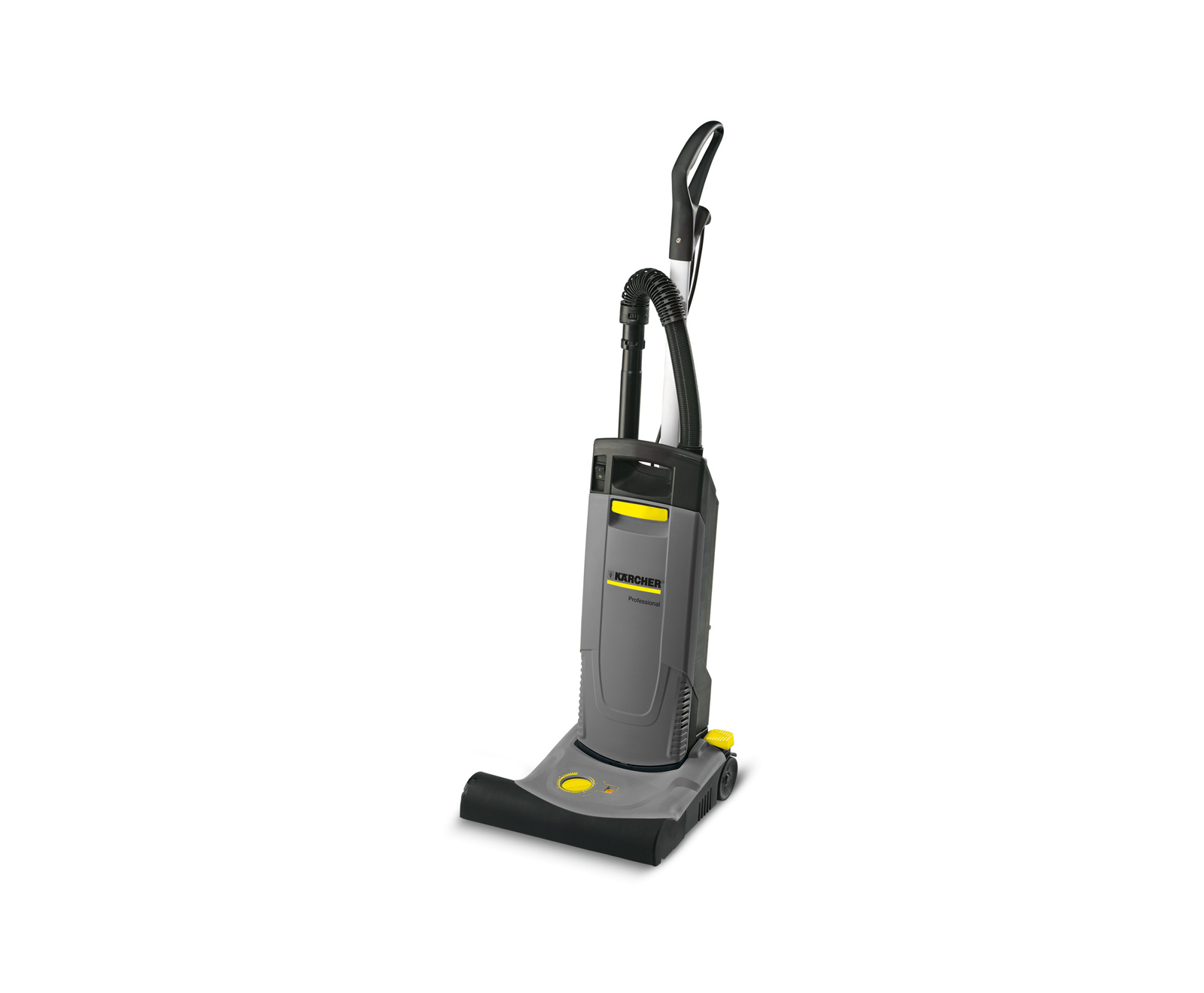

CV 38/2 (part number: 1.033-312.0)
2 / 8

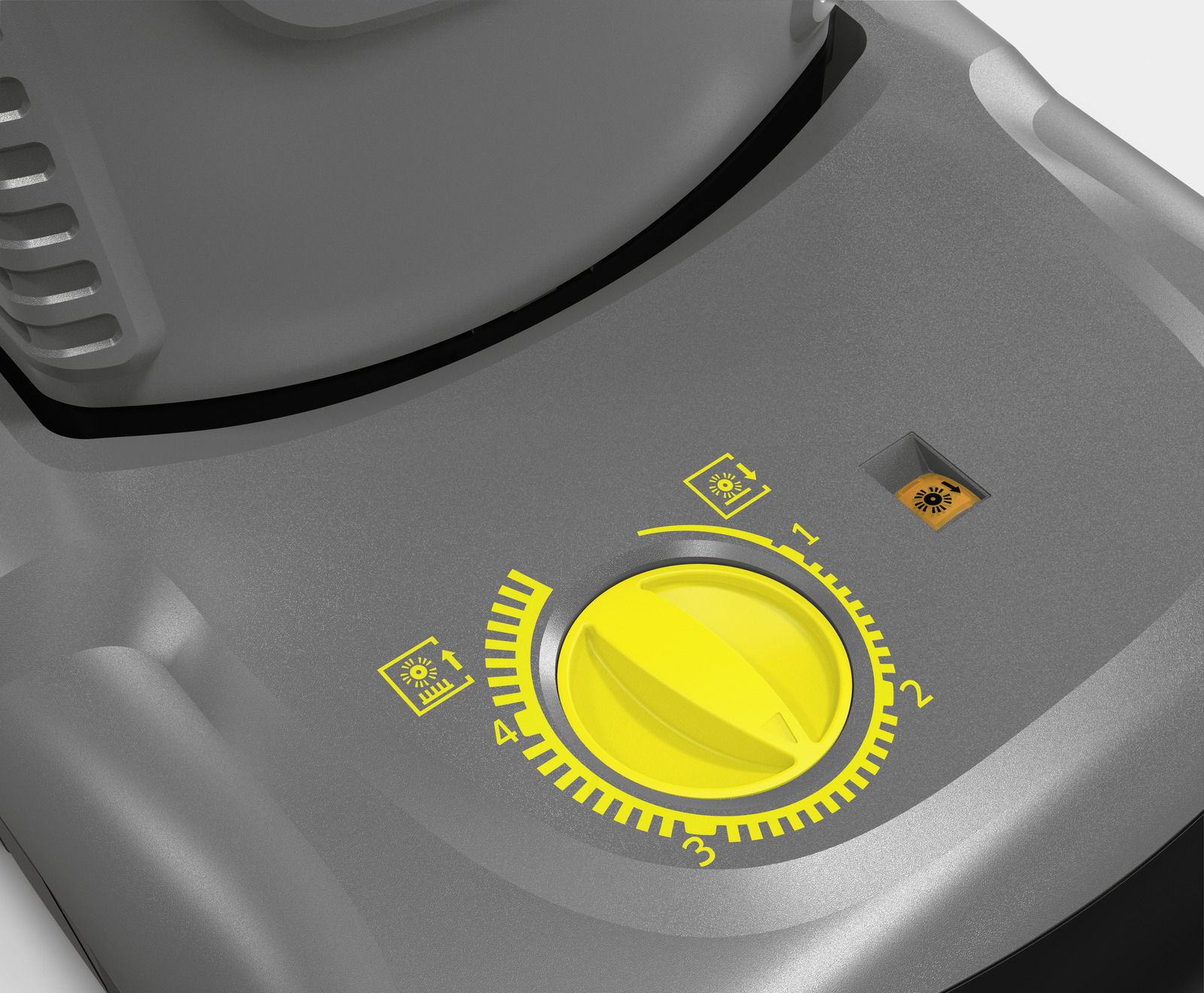

Indicator light
3 / 8

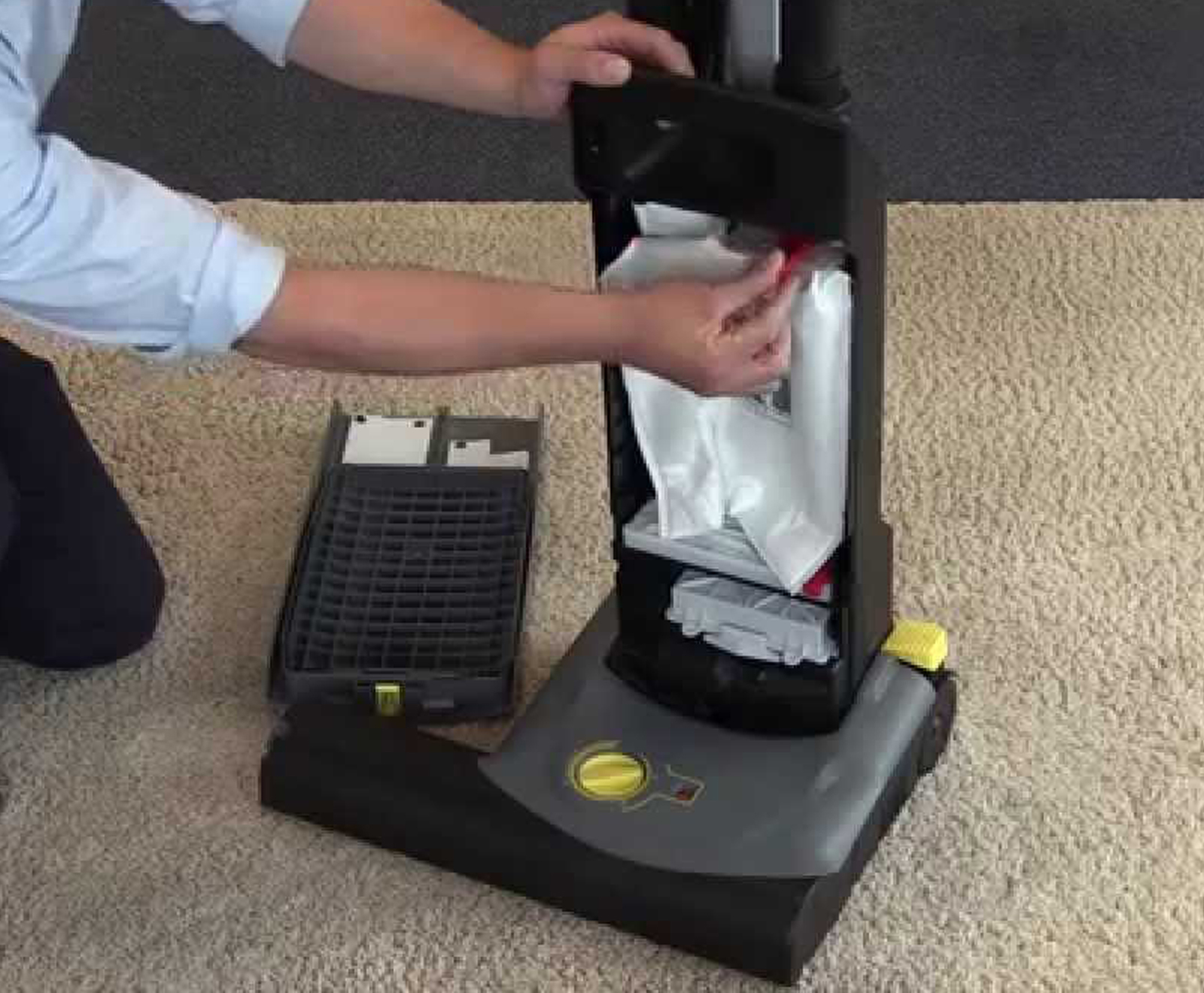

Fleece filter bag
4 / 8

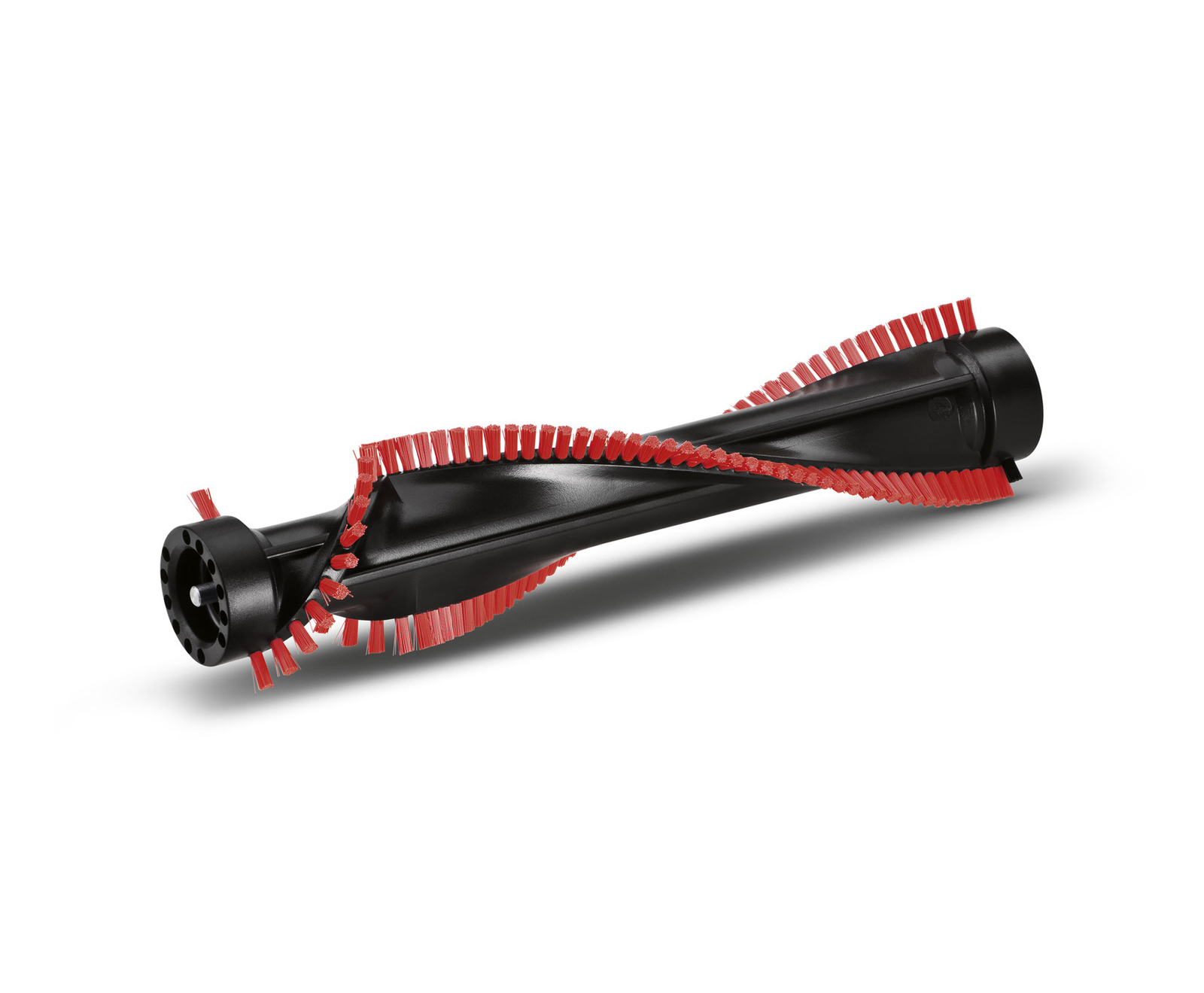

Roller brush
5 / 8

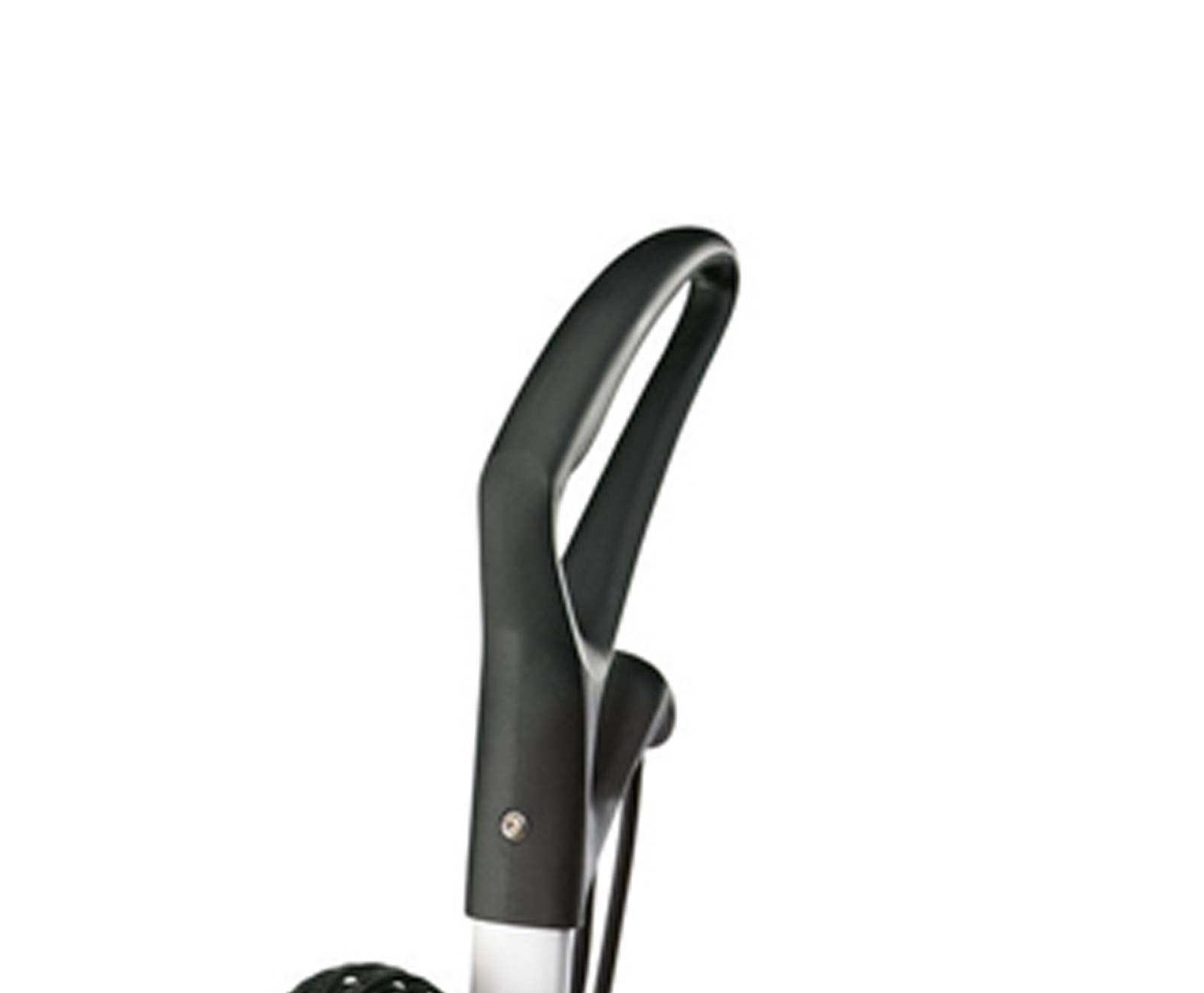

Handle
6 / 8

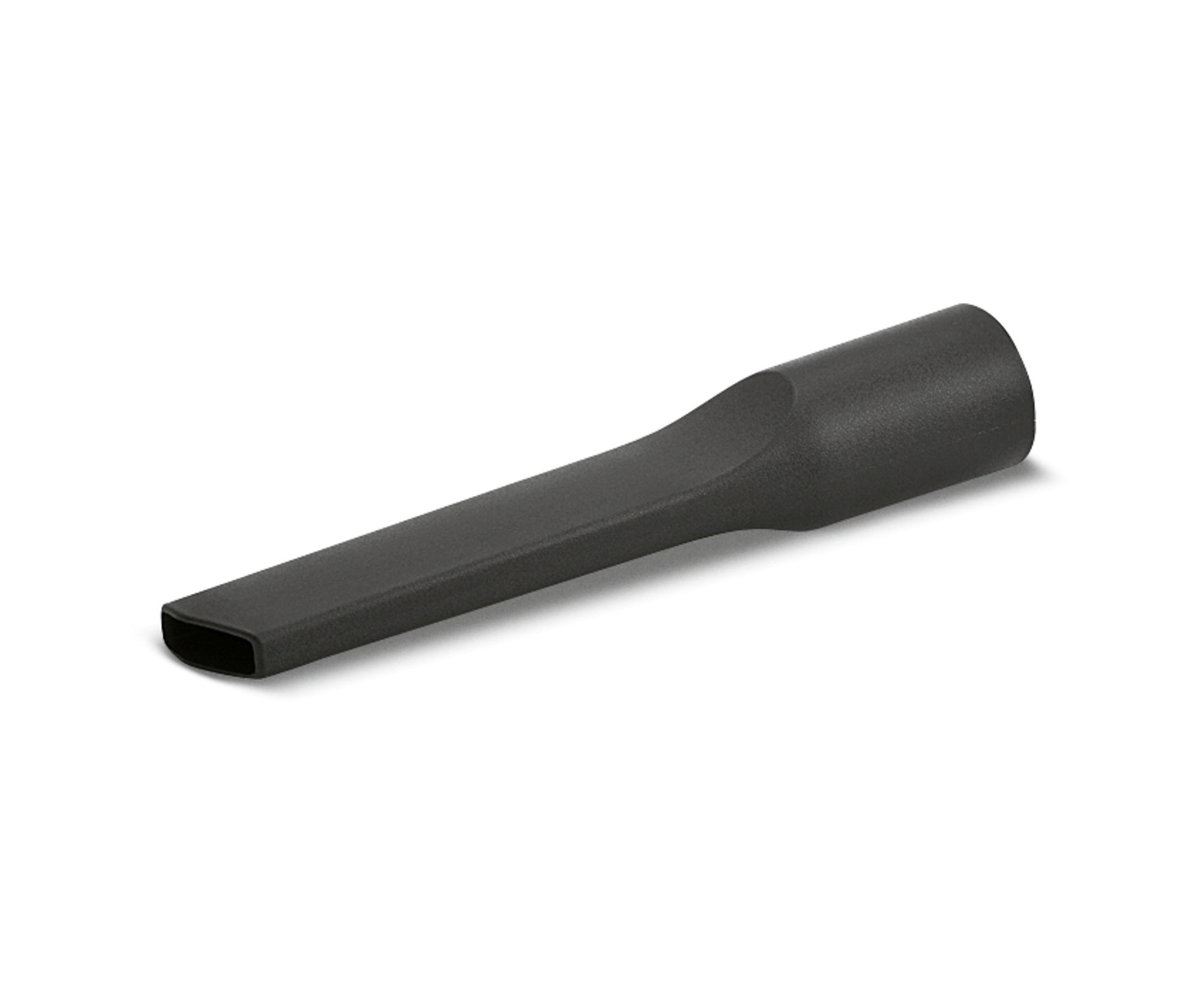

Crevice nozzle
7 / 8

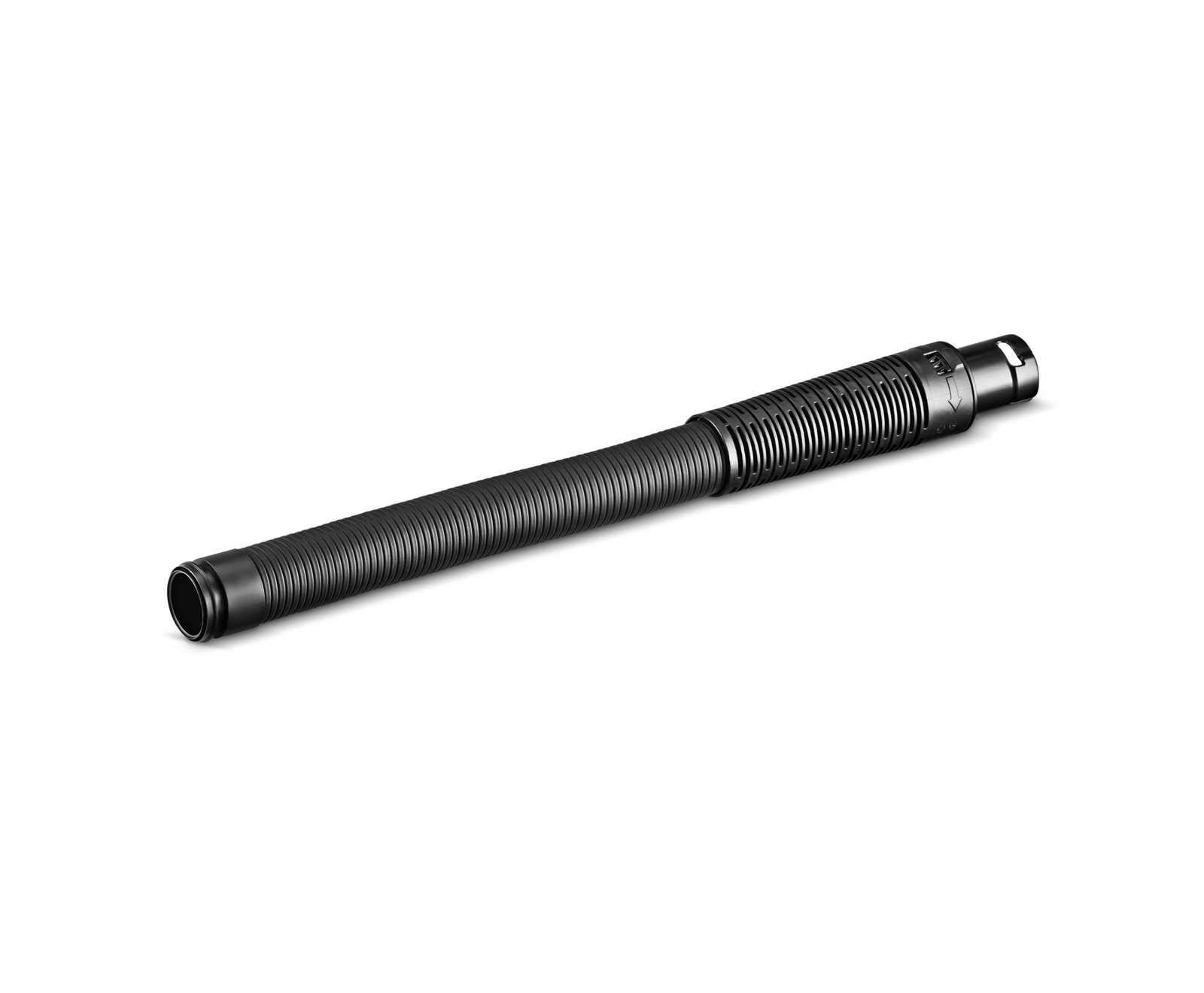

Stretch suction hose
8 / 8

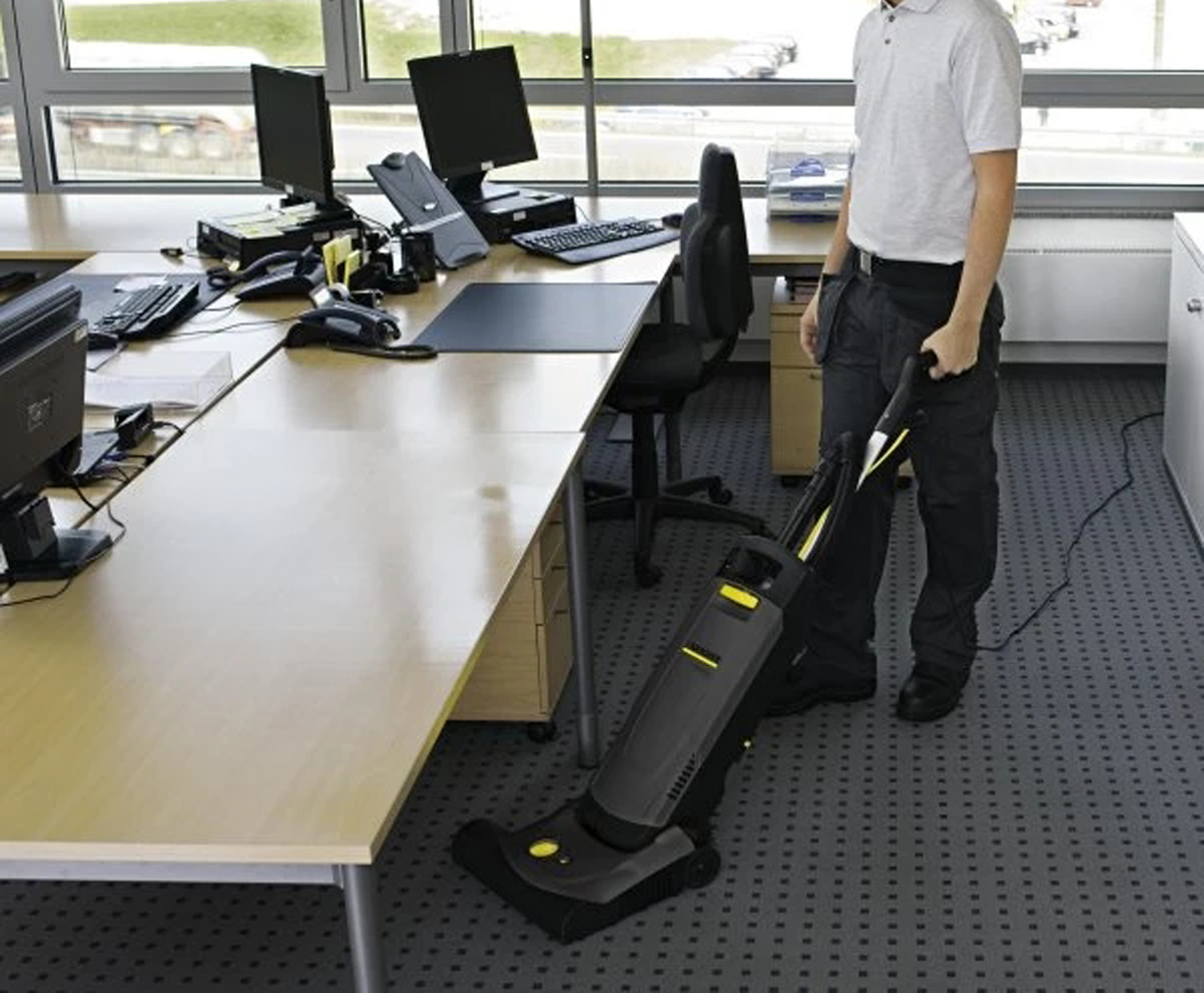

Use in offices

CV 38/2 (part number: 1.033-312.0)

Indicator light

Fleece filter bag

Roller brush

Handle

Crevice nozzle

Stretch suction hose

Use in offices








DESCRIPTION



Kärcher’s CV 38/2 upright vacuum cleaner is a lightweight, twin-engined machine with 380 mm working width which combines high suction power with a direct motor driven brush. Stubborn dirt particles, threads and hairs are dislodged from the carpet with ease whilst freshening up the carpet pile at the same time. Equipped with a wide, low profile brush head, the 38/2 cleans right up to edges and can operate completely flat for cleaning under furniture and beds.



FEATURES AND BENEFITS



Indicator light
The indicator light shows when the roller brush needs to be adjusted to achieve optimum cleaning results.


Easy brush replacement
Brushes are available with hard and soft bristles.



SPECIFICATIONS



Technical data

Equipment



Working width (mm)
380

Air flow rate (l/s)
40

Vacuum (mbar/kPa)
200 / 20

Container capacity (l)
5.5

Max. rated input power (W)
max. 850

Standard nominal width
ID / 35

Cable length (m)
12

Sound pressure level (dB(A))
65

Brush motor power (W)
150

Turbine power (W)
850

Phase (Ph)
1

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
9.5

Dimensions (L × W × H) (mm)
1215 x 390 x 350

Crevice nozzle
Upholstery nozzle
Detachable suction tube
Stretchable suction hose
Filter bag, fleece
Filter status indicator
Handle
Height-adjustable handle
Roller brush, standard, 1 piece(s)



DOWNLOADS



Product information

Operating Instructions

Quickstart instructions

Safety instructions

  Specification   Operating instructions   Quickstart instructions   Safety instructions



CV 38/2

Being simple and comfortable to use, vacuum brush CV 38/2 is quipped with many time-saving features to fulfill the highest requirements in terms of area performance, cleaning result and ergonomics.





1 / 8
CV 38/2 (part number: 1.033-312.0)
2 / 8
Indicator light
3 / 8
Fleece filter bag
4 / 8
Roller brush
5 / 8
Handle
6 / 8
Crevice nozzle
7 / 8
Stretch suction hose
8 / 8
Use in offices

CV 38/2 (part number: 1.033-312.0)

Indicator light

Fleece filter bag

Roller brush

Handle

Crevice nozzle

Stretch suction hose

Use in offices








DESCRIPTION



Kärcher’s CV 38/2 upright vacuum cleaner is a lightweight, twin-engined machine with 380 mm working width which combines high suction power with a direct motor driven brush. Stubborn dirt particles, threads and hairs are dislodged from the carpet with ease whilst freshening up the carpet pile at the same time. Equipped with a wide, low profile brush head, the 38/2 cleans right up to edges and can operate completely flat for cleaning under furniture and beds.



FEATURES AND BENEFITS



Indicator light
The indicator light shows when the roller brush needs to be adjusted to achieve optimum cleaning results.


Easy brush replacement
Brushes are available with hard and soft bristles.



SPECIFICATIONS



Technical data

Equipment



Working width (mm)
380

Air flow rate (l/s)
40

Vacuum (mbar/kPa)
200 / 20

Container capacity (l)
5.5

Max. rated input power (W)
max. 850

Standard nominal width
ID / 35

Cable length (m)
12

Sound pressure level (dB(A))
65

Brush motor power (W)
150

Turbine power (W)
850

Phase (Ph)
1

Frequency (Hz)
50 - 60

Voltage (V)
220 - 240

Weight without accessories (kg)
9.5

Dimensions (L × W × H) (mm)
1215 x 390 x 350

Crevice nozzle
Upholstery nozzle
Detachable suction tube
Stretchable suction hose
Filter bag, fleece
Filter status indicator
Handle
Height-adjustable handle
Roller brush, standard, 1 piece(s)



DOWNLOADS



Product information

Operating Instructions

Quickstart instructions

Safety instructions

  Specification   Operating instructions   Quickstart instructions   Safety instructions



CV 38/2

Being simple and comfortable to use, vacuum brush CV 38/2 is quipped with many time-saving features to fulfill the highest requirements in terms of area performance, cleaning result and ergonomics.





1 / 8
CV 38/2 (part number: 1.033-312.0)
2 / 8
Indicator light
3 / 8
Fleece filter bag
4 / 8
Roller brush
5 / 8
Handle
6 / 8
Crevice nozzle
7 / 8
Stretch suction hose
8 / 8
Use in offices







DESCRIPTION



Kärcher’s CV 38/2 upright vacuum cleaner is a lightweight, twin-engined machine with 380 mm working width which combines high suction power with a direct motor driven brush. Stubborn dirt particles, threads and hairs are dislodged from the carpet with ease whilst freshening up the carpet pile at the same time. Equipped with a wide, low profile brush head, the 38/2 cleans right up to edges and can operate completely flat for cleaning under furniture and beds.



FEATURES AND BENEFITS



Indicator light
The indicator light shows when the roller brush needs to be adjusted to achieve optimum cleaning results.


Easy brush replacement
Brushes are available with hard and soft bristles.



SPECIFICATIONS



Technical data



Working width (mm)
380


Air flow rate (l/s)
40


Vacuum (mbar/kPa)
200 / 20


Container capacity (l)
5.5


Max. rated input power (W)
max. 850


Standard nominal width
ID / 35


Cable length (m)
12


Sound pressure level (dB(A))
65


Brush motor power (W)
150


Turbine power (W)
850


Phase (Ph)
1


Frequency (Hz)
50 - 60


Voltage (V)
220 - 240


Weight without accessories (kg)
9.5


Dimensions (L × W × H) (mm)
1215 x 390 x 350



Equipment



Crevice nozzle


Upholstery nozzle


Detachable suction tube


Stretchable suction hose


Filter bag, fleece


Filter status indicator


Handle


Height-adjustable handle


Roller brush, standard, 1 piece(s)



DOWNLOADS



Product information

Operating Instructions

Quickstart instructions

  Specification   Operating instructions   Quickstart instructions


Safety instructions

  Safety instructions


VIDEOS



  • Checking of carpet vacuum cleaner

  •
  • Brush cleaning of carpet vacuum cleaners



APPLICATION AREAS



Offices


Stores


Cafeterias


Restaurants


Hotels
