SG 4/4

The compact SG 4/4 steam cleaner with powerful 4-bar steam pressure. With continuously variable steam volume control and VapoHydro function for perfect cleaning results without the use of chemicals.





1 / 8

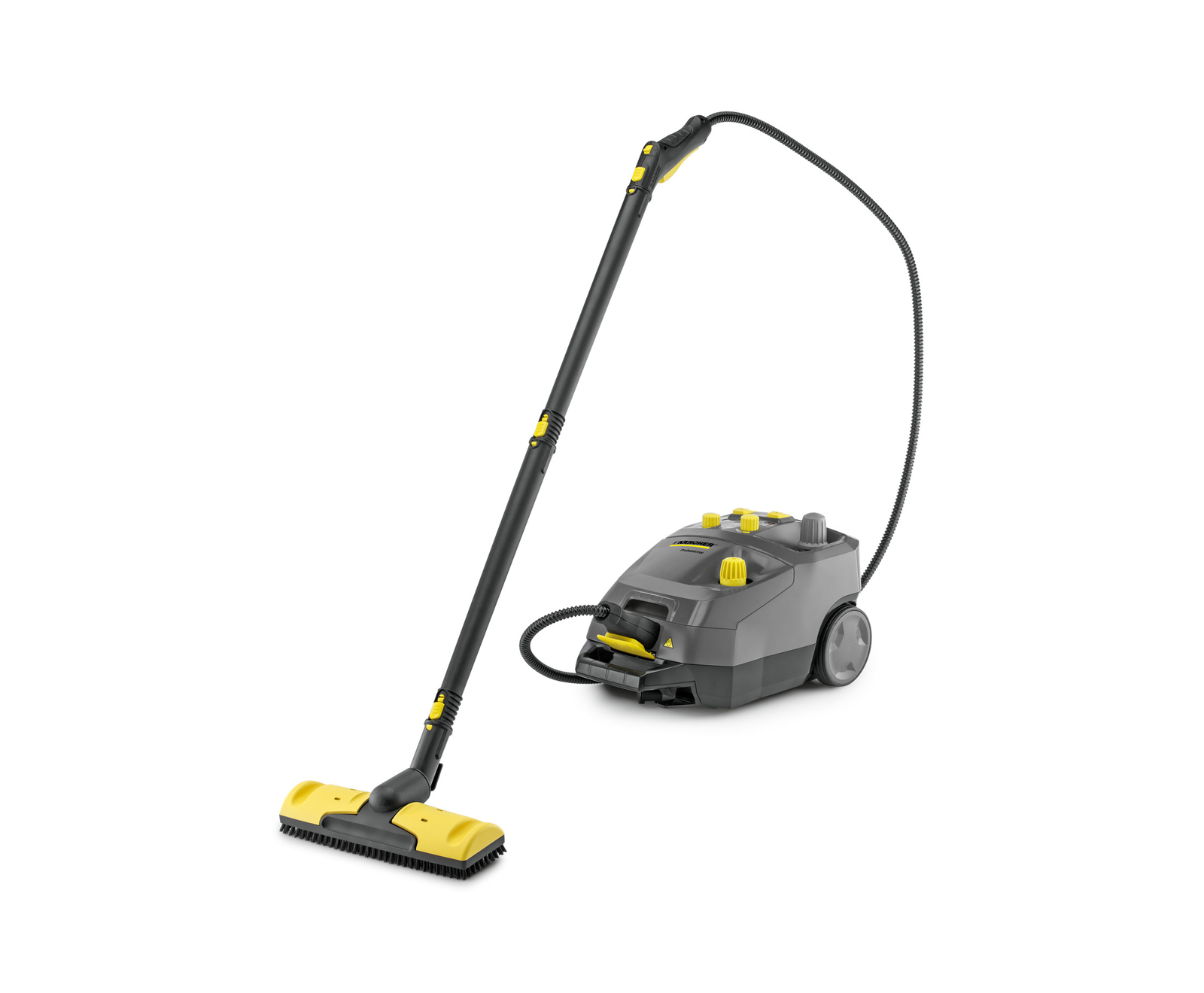

SG 4/4 (part number: 1.092-104.0)
2 / 8
2-tank system
3 / 8

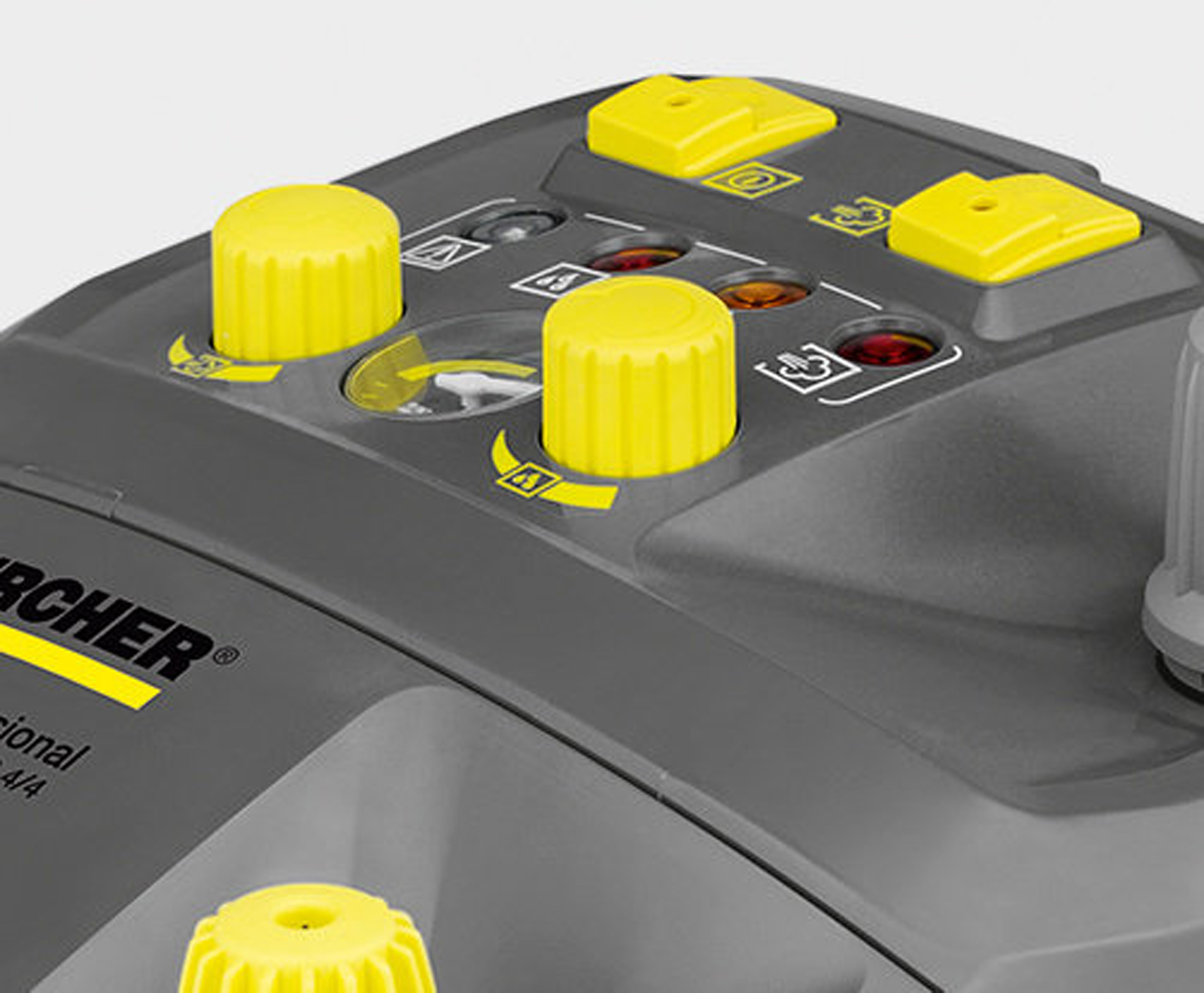

VapoHydro
4 / 8

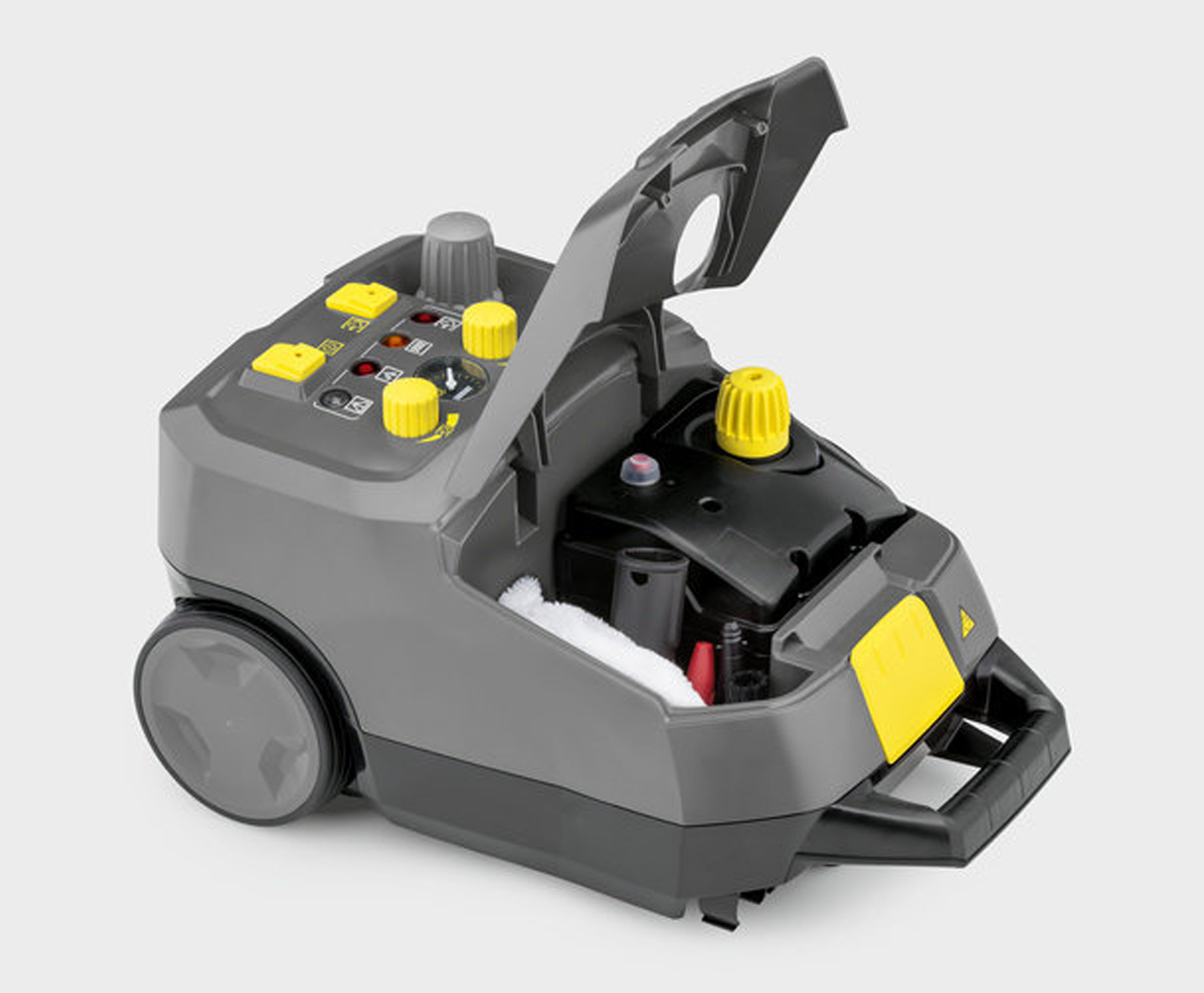

Accessory storage compartment
5 / 8

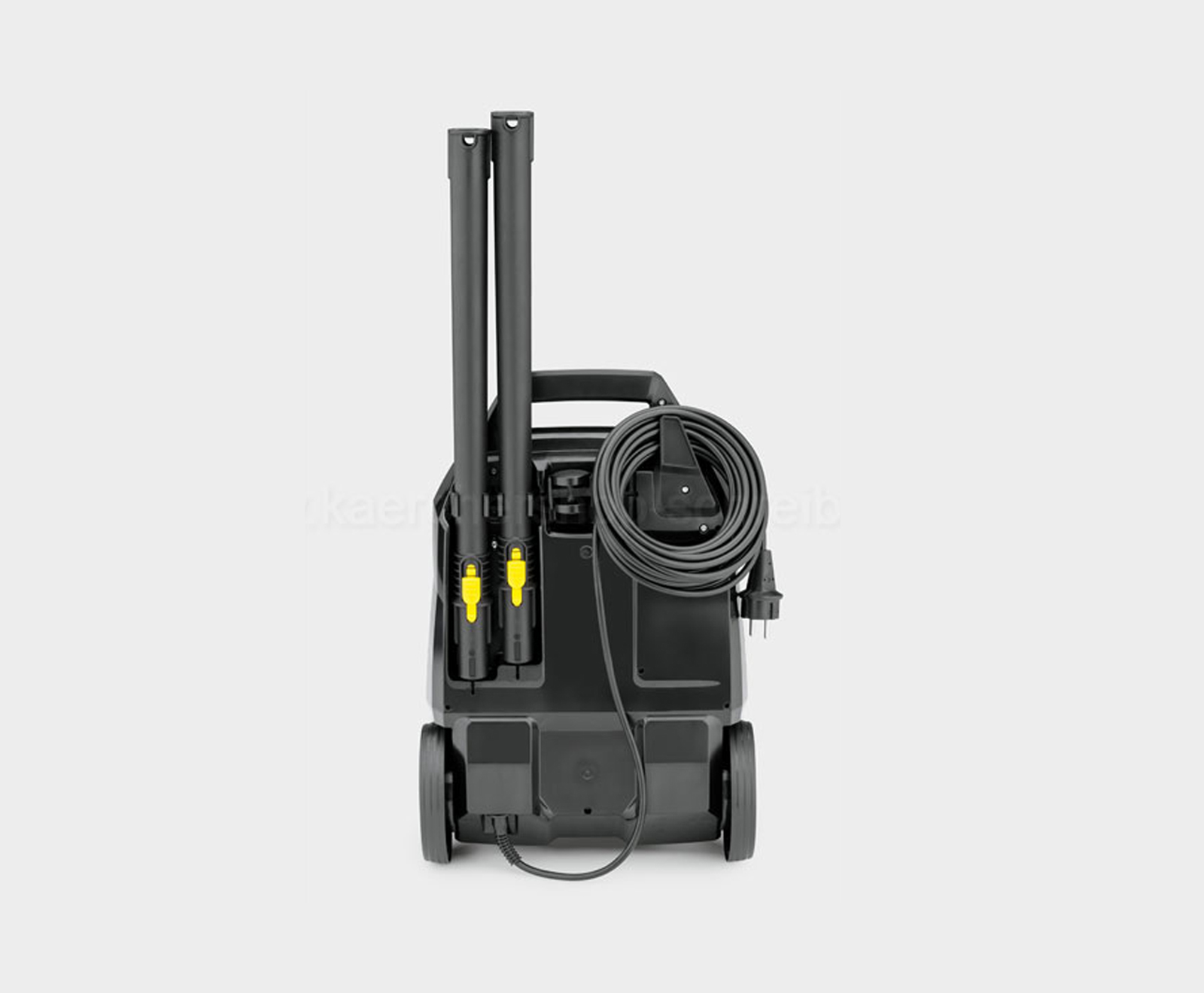

Cable hook
6 / 8
Use in washrooms
7 / 8

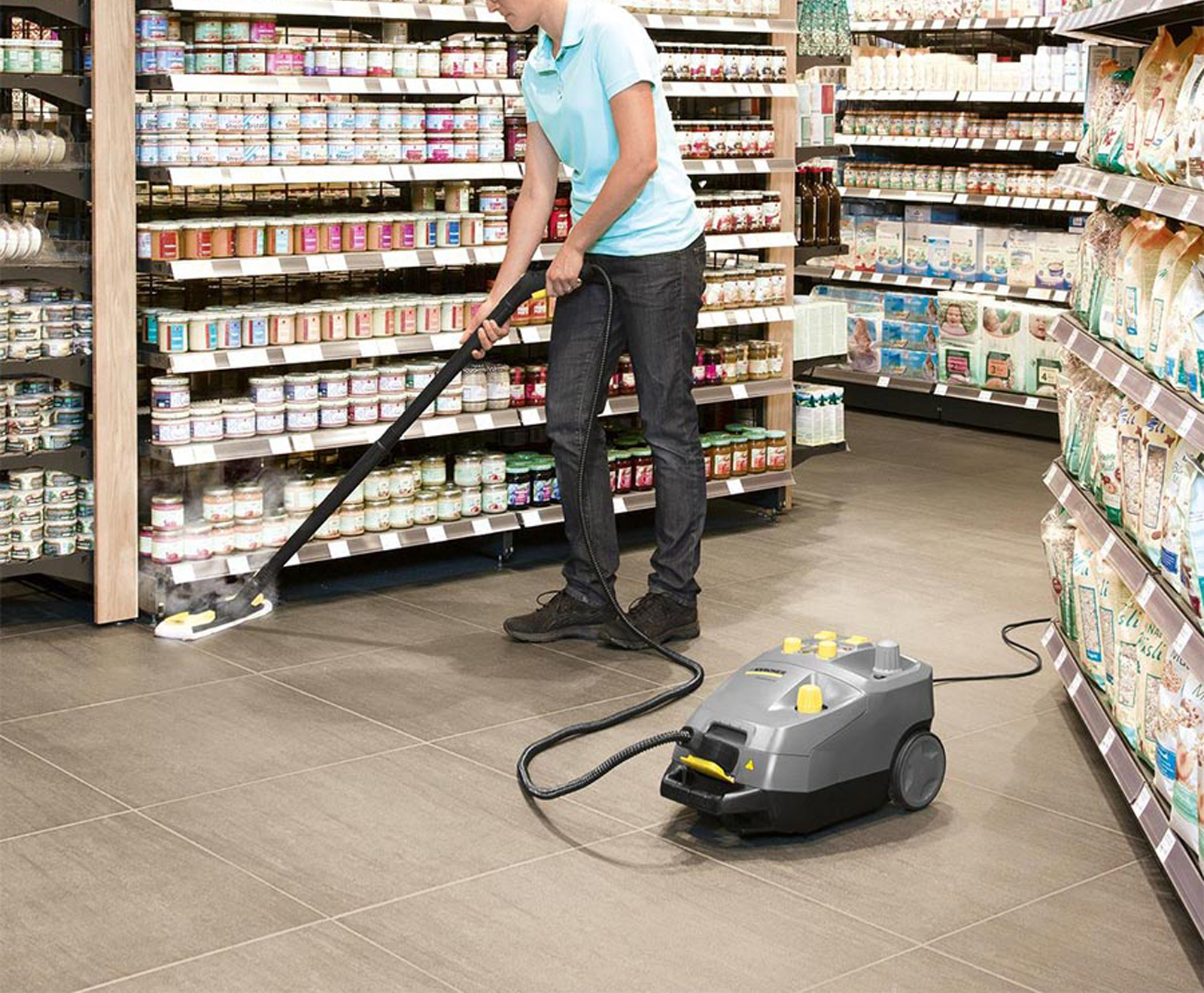

Use in stores
8 / 8

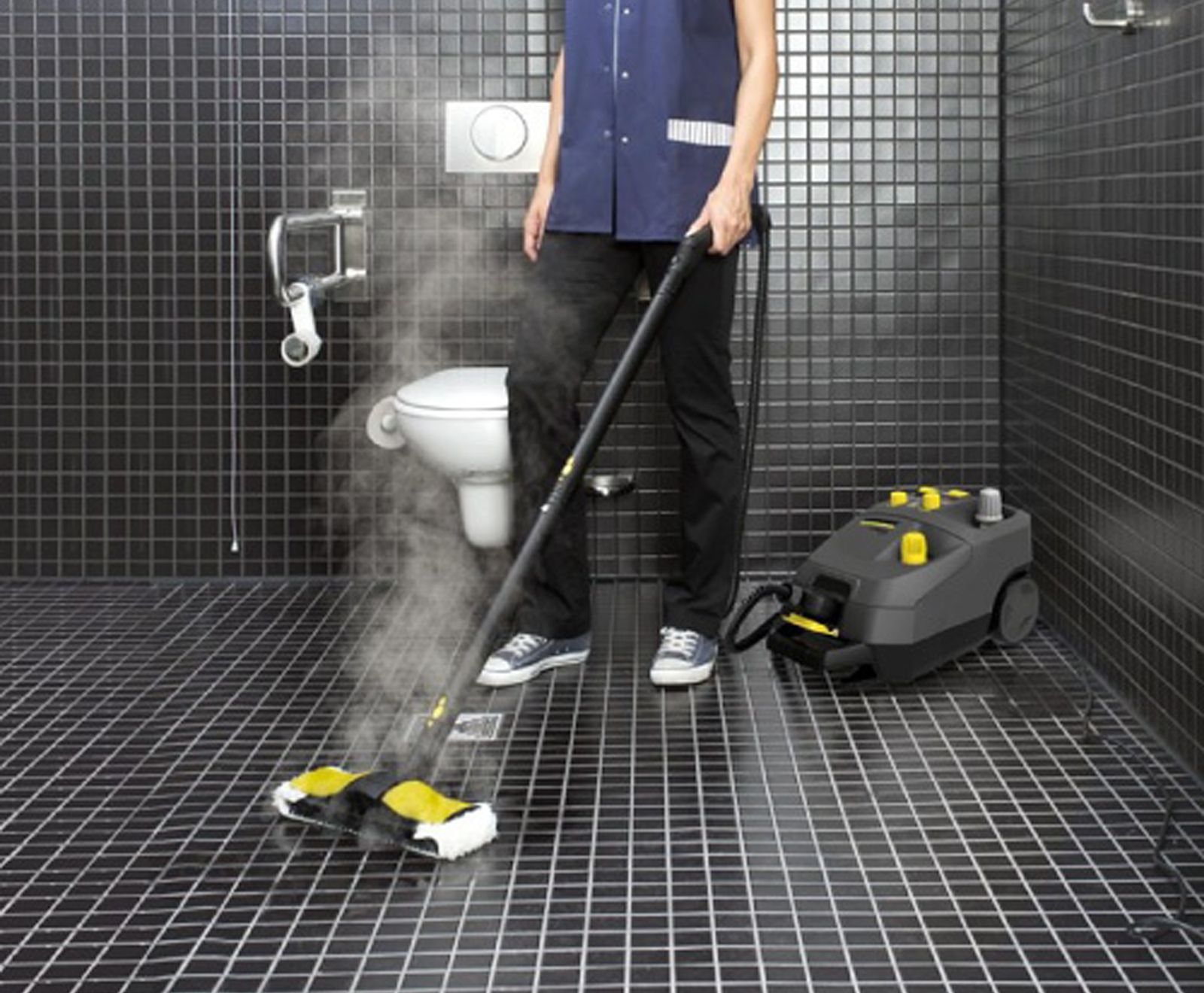

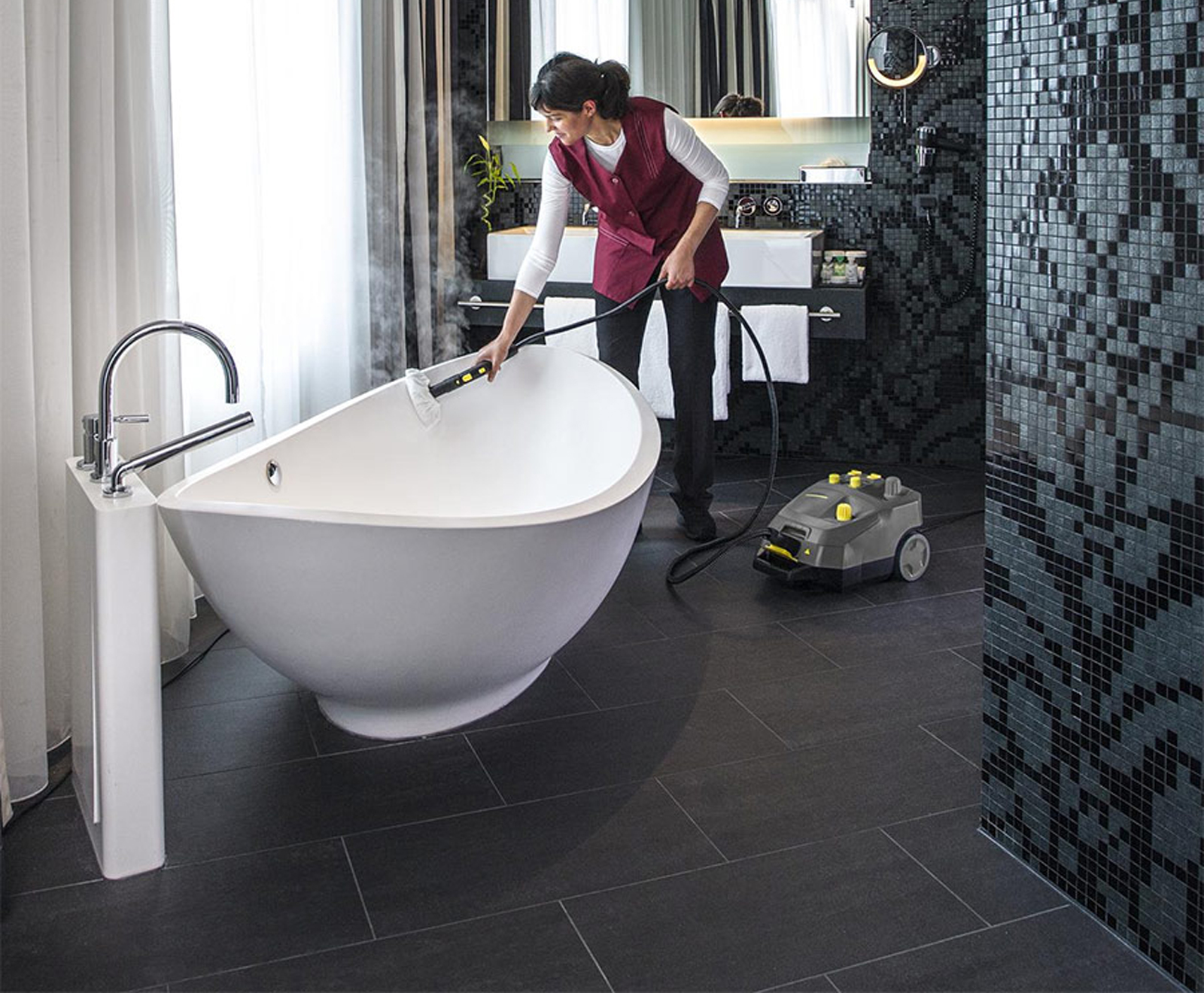

Use in bathrooms

SG 4/4 (part number: 1.092-104.0)

2-tank system

VapoHydro

Accessory storage compartment

Cable hook

Use in washrooms

Use in stores

Use in bathrooms








DESCRIPTION



The SG 4/4 is a compact and robust steam cleaner which offers outstanding power and certified disinfection*. Optimal cleaning effect is achieved thanks to 4-bar steam pressure. Continuously variable steam volume control and the VapoHydro function (continuous regulation of steam saturation) mean that the machine can be adapted perfectly to any cleaning task. The 2-tank system can be refilled at any time, and ensures a rapid heat-up time as well as uninterrupted operation. The temperature indicator also helps to ensure optimal cleaning results. The machine is extremely versatile and cleans without the use of chemicals. The extensive equipment package includes two floor nozzles (for abrasive and hygienic cleaning), an integrated storage compartment for accessories, an integrated cord hook and a pipe intake for space-saving storage. (*According to prEN 16615, PVC floor, machine: SG 4/4 (floor nozzle with slats, 30 cm/sec, max. steam pressure, min. VapoHydro), test bacteria: Enterococcus hirae ATCC 10541).



FEATURES AND BENEFITS



2-tank system
The fresh water tank can be continuously filled as the boiler and tank are separate.
Because only part of the overall volume is heated at any one time, it takes very little time for a consistent steam pattern to form.
With a total capacity of over 4 litres, the SG 4/4 can be used for long periods without refilling.


VapoHydro
Thanks to VapoHydro, the steam level can be infinitely adjusted to the cleaning task.
In addition to the steam pressure, the saturation can be infinitely adjusted from full steam to hot water.
With the hot water jet, even stubborn dirt can be effectively dissolved from the start.


Accessory storage compartment
The integrated storage compartment enables the storage of a variety of accessories.
Special small parts are always safely stored and do not get lost.
Even the tubes can be stored on the rear of the unit.


Hygienic cleaning
Hygienic cleaning without the use of chemical substances.
The avoidance of aggressive cleaning agents protects the operator and treated surfaces.
Only water is used for cleaning – unharmful to health and cost-effective.



SPECIFICATIONS



Technical data

Equipment



Heating output (W)
2300

Tank capacity (l)
4

Cable length (m)
7.5

Steam pressure (bar)
4

Boiler temperature (°C)
max. 145

Voltage (V)
220 - 240

Frequency (Hz)
50 - 60

Weight without accessories (kg)
8

Ship weight incl. packaging (kg)
11.2

Dimensions (L × W × H) (mm)
475 x 320 x 275

Steam suction hose with handle
Steam tubes × 2
Floor nozzle
Hand nozzle
Round brush, black
Upholstery nozzle with brush
Power nozzle
Detail nozzle



DOWNLOADS



Product information

Operating Instructions

Safety instructions
