HDS 7/16 C

The 3-phase hot water high-pressure cleaner "HDS 7/16 C" in the compact class with eco!efficiency mode and many other practical functions.





1 / 8

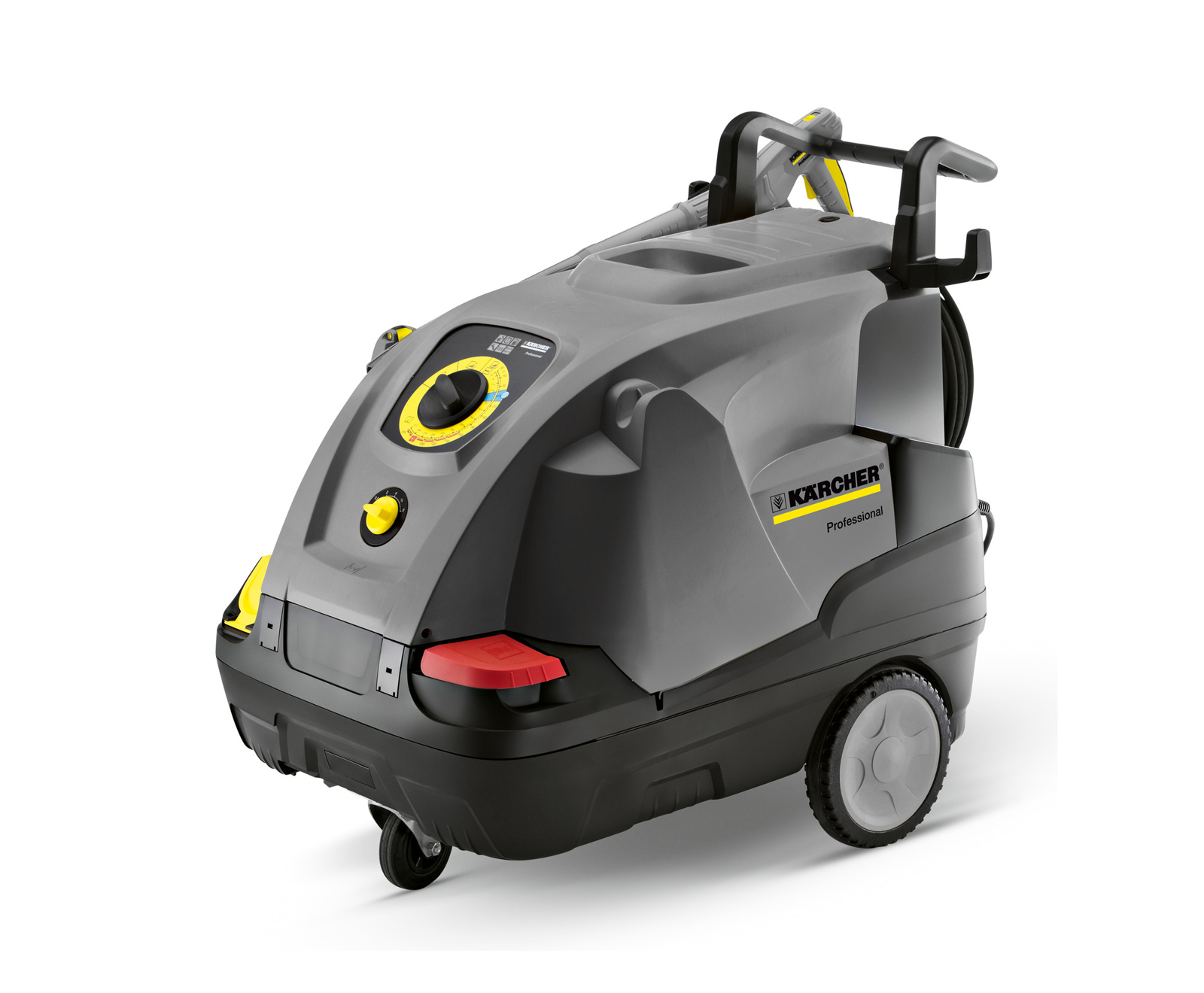

HDS 7/16 C (part number: 1.173-900.0)
2 / 8
EASY!Force high-pressure gun
3 / 8

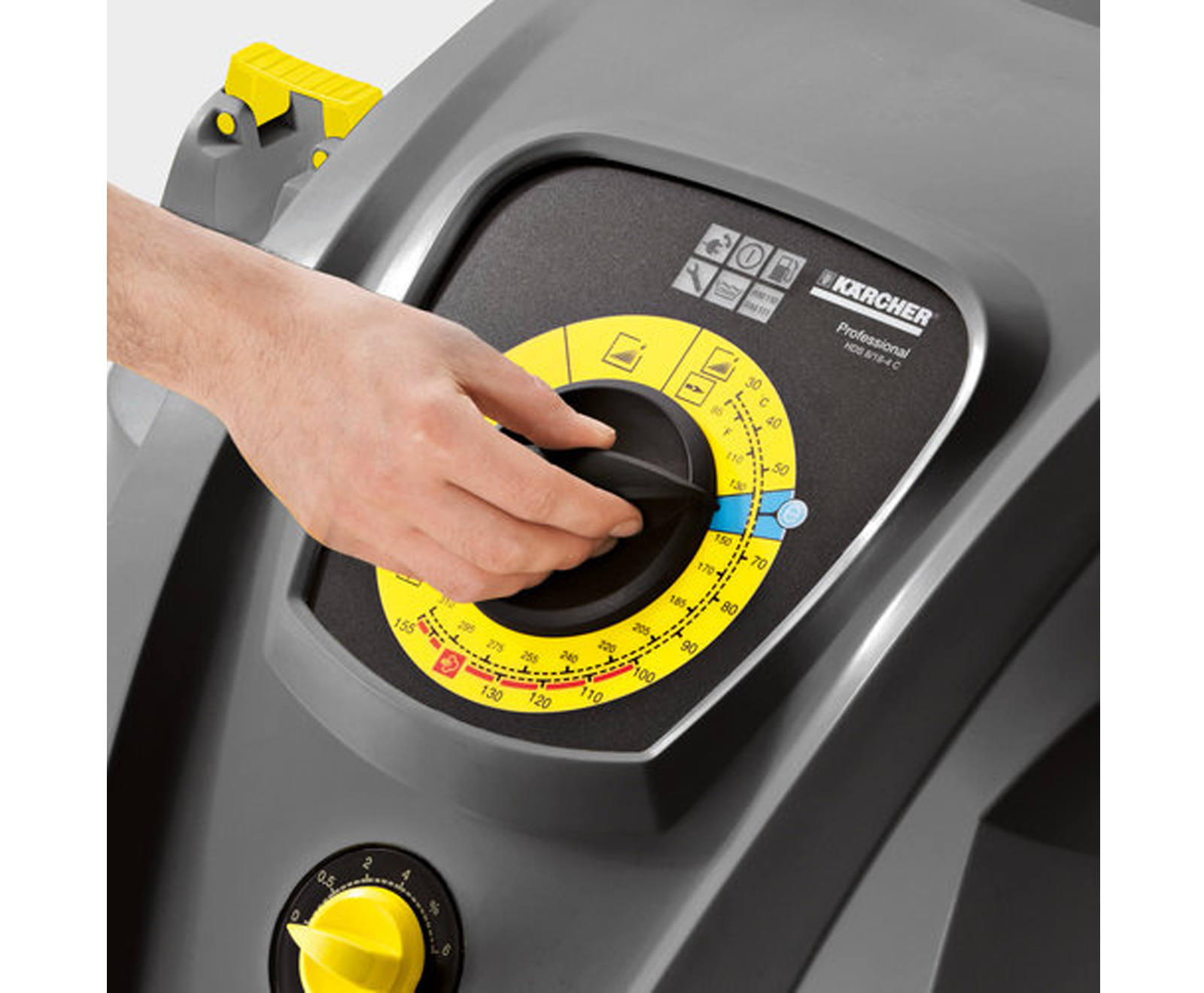

Eco!efficiency mode
4 / 8

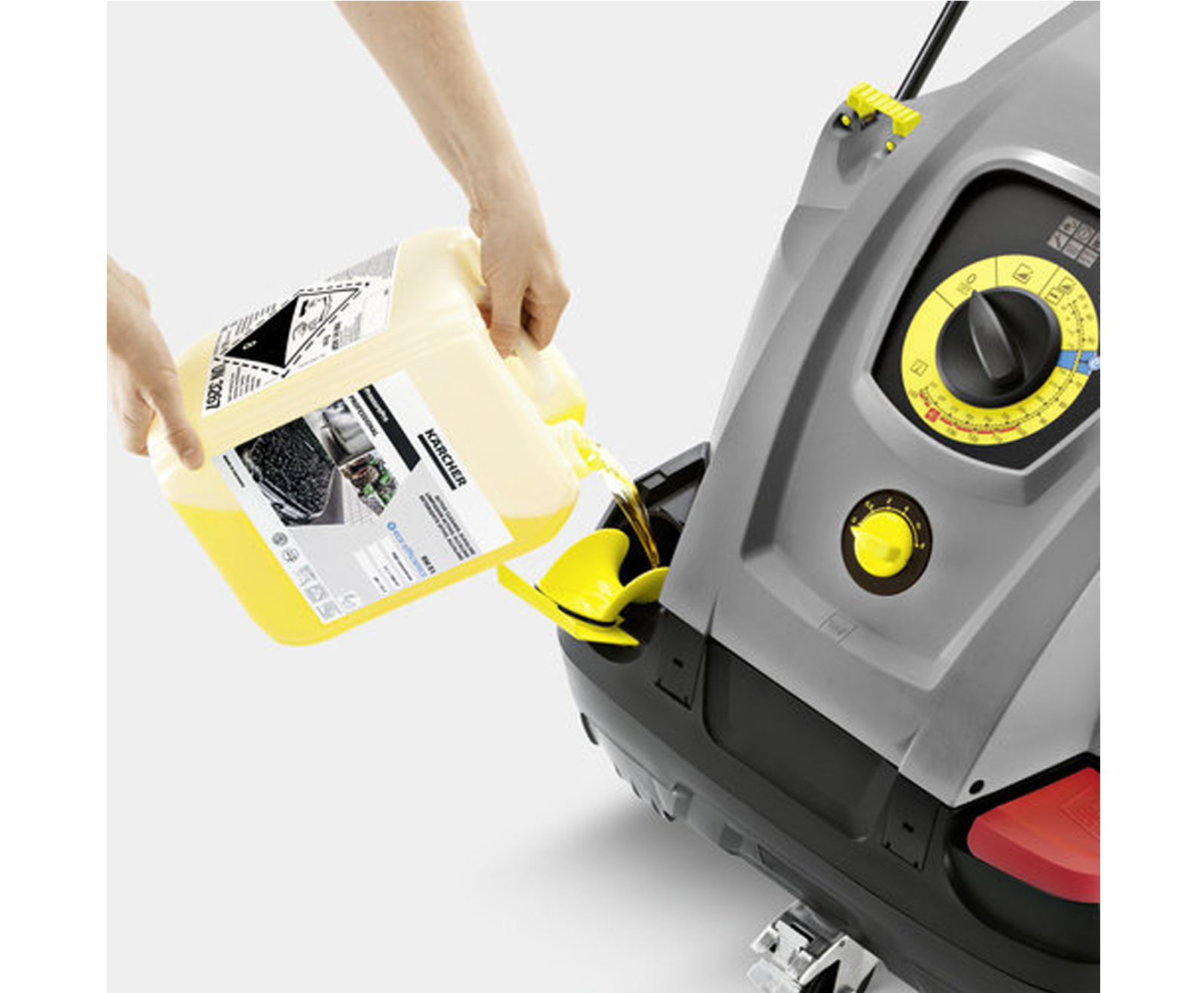

Large tank opening
5 / 8

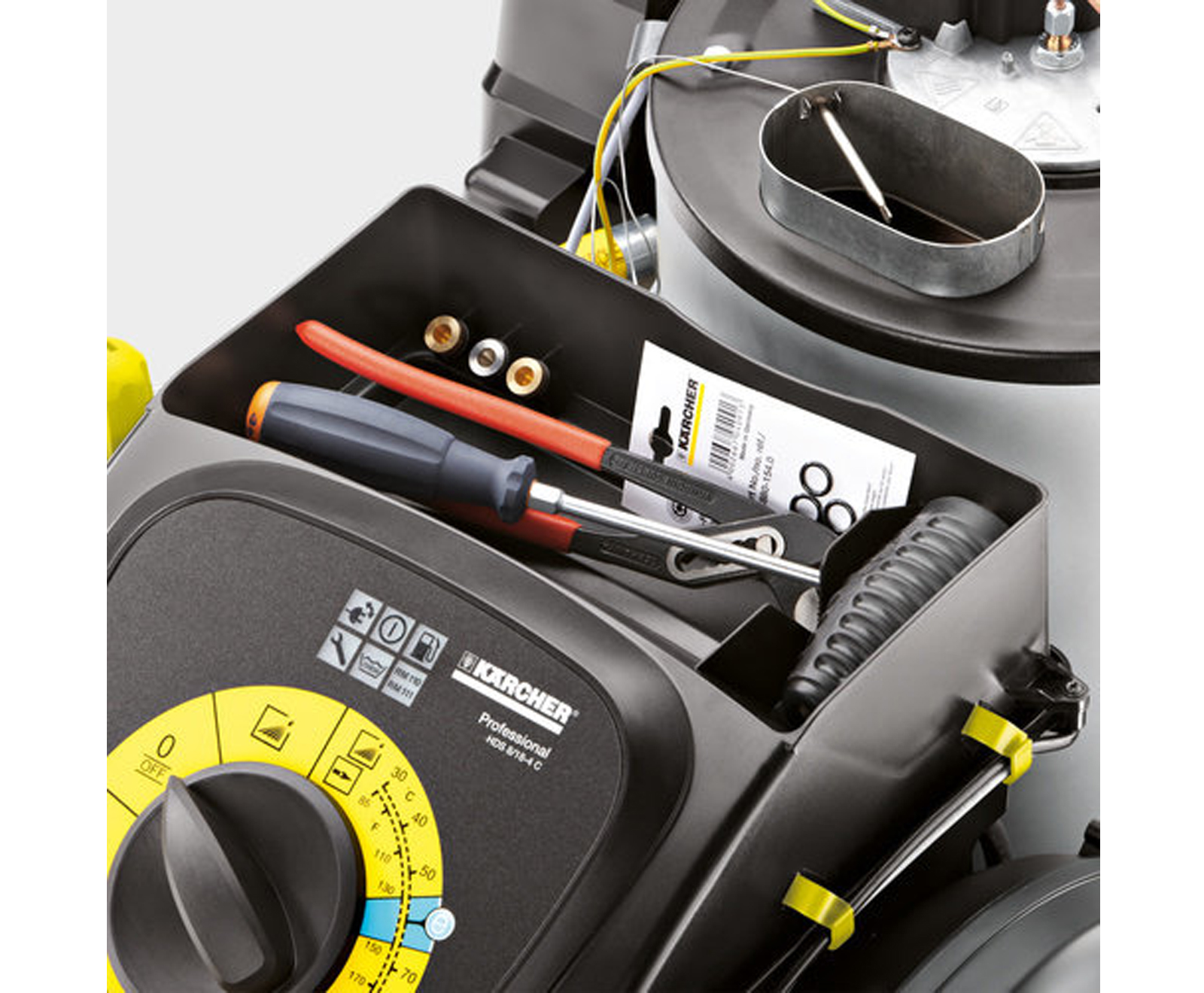

Lockable accessory compartment
6 / 8

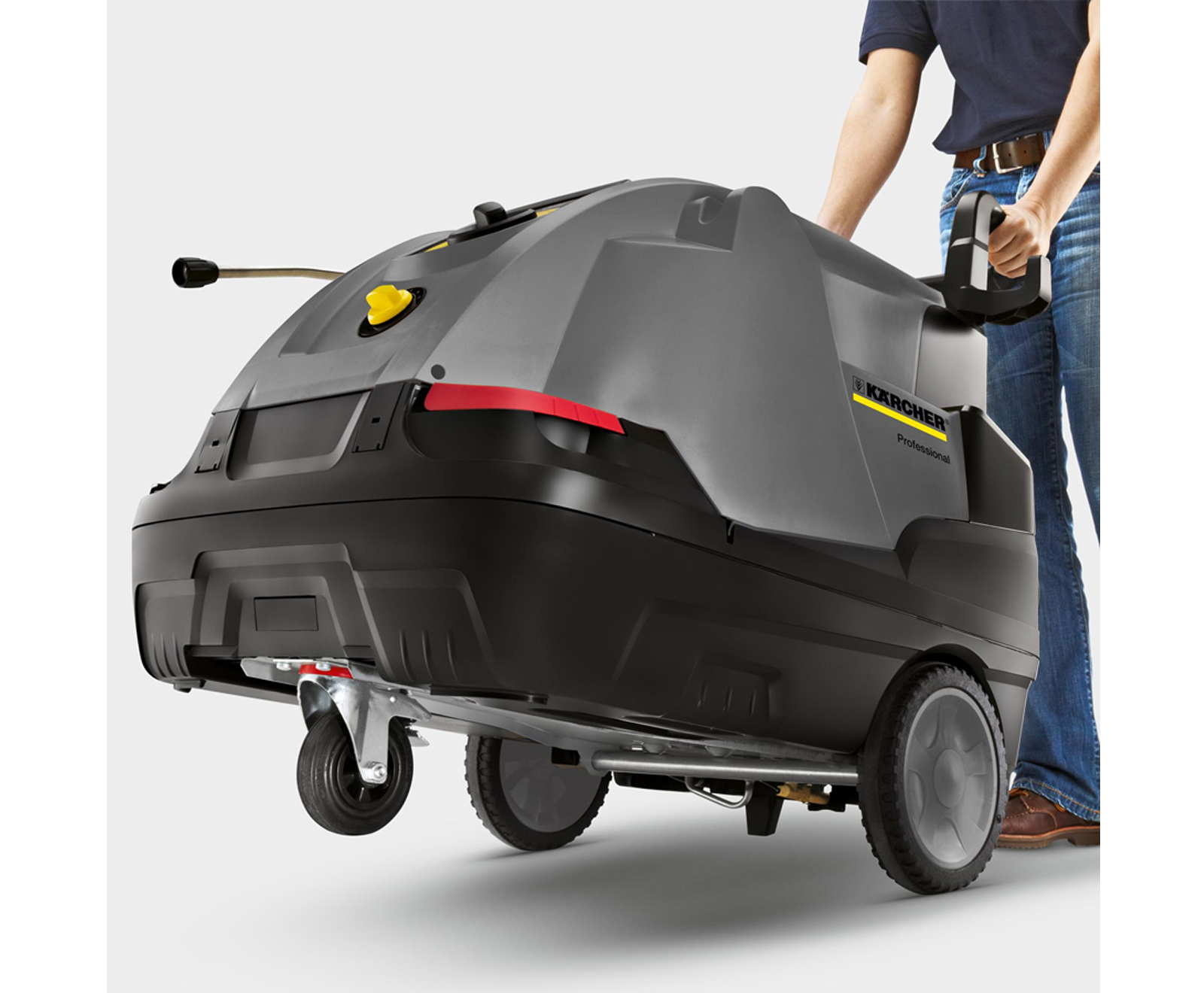

Large wheels and steering roller
7 / 8
For cleaning devices
8 / 8
For cleaning outside areas

HDS 7/16 C (part number: 1.173-900.0)

EASY!Force high-pressure gun

Eco!efficiency mode

Large tank opening

Lockable accessory compartment

Large wheels and steering roller

For cleaning devices

For cleaning outside areas








DESCRIPTION



The powerful 3-phase hot water high-pressure cleaner "HDS 7/16 C" from the HDS compact class has a clever single-button operation as well as large wheels and a steering roller/castor, which make handling and transport very easy for the user. Superior equipment and the extremely efficient and environment-friendly operation thanks to eco!efficiency mode characterise this machine. The EASY!Force high-pressure gun utilises the recoil force of the high-pressure jet to reduce the retaining force to zero, while the EASY!Lock quick-release couplings enable handling that is five times faster than conventional screw connections, without compromising on robustness or longevity. Tanks for cleaning agent and fuel are protected in the hard-wearing chassis that also permits tougher applications. Accessories, nozzles and tools can be easily stowed in the practical storage compartments. This allows more heavy-duty use. Accessories, nozzles and tools can be stored easily in the practical storage compartments.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Efficiency
Eco!efficiency mode – efficient and environmentally friendly, even when used for prolonged periods.
Reduces fuel consumption and CO2 emissions by 20%.
Accurate cleaning agent dosing unit with clear rinse function.


Ease of use
Intuitive operation thanks to the large single-button selector switch.
Large tank opening with filling chute.


Storage
Lockable accessory compartment for nozzles, tools, etc.
Storage hooks for power cable and high-pressure hose.
Integrated lance holder for transport.


Reliability
The Soft Damping System (SDS) compensates for vibration and pressure peaks in the high-pressure system.
Large water filter protects pump against damage.
Water softening system protects the heating coil against calcification damage.


Mobility
"Jogger" design with large wheels and steering roller.
Large integrated handles in the chassis.
Integrated tilting aid for effortlessly negotiating obstacles such as steps and kerbs.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
3 / 400 / 50

Flow rate (l/h)
270 - 660

Working pressure (bar/MPa)
30 - 160 / 3 - 16

Max. temperature (supply 12°C) (°C)
max. 80

Connection load (kW)
4.7

Heating oil or gas consumption, full load (kg/h)
4.1

Power cable (m)
5

Fuel tank (l)
15

Weight without accessories (kg)
105.8

Ship weight incl. packaging (kg)
114.6

Dimensions (L × W × H) (mm)
1060 x 650 x 920

Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
Soft Damping System (SDS)
Pressure cut-off
Integrated fuel and detergent tank



DOWNLOADS



Product information

Shortlist of spare parts

Quickstart instructions

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Quickstart instructions   Operating instructions   Safety instructions



HDS 7/16 C
