HD 10/25-4 S

The "HD 10/25-4 S" cold water high-pressure cleaner in an upright construction style impresses with EASY!Force high-pressure gun, pressure switch control and Servo Control.





1 / 8

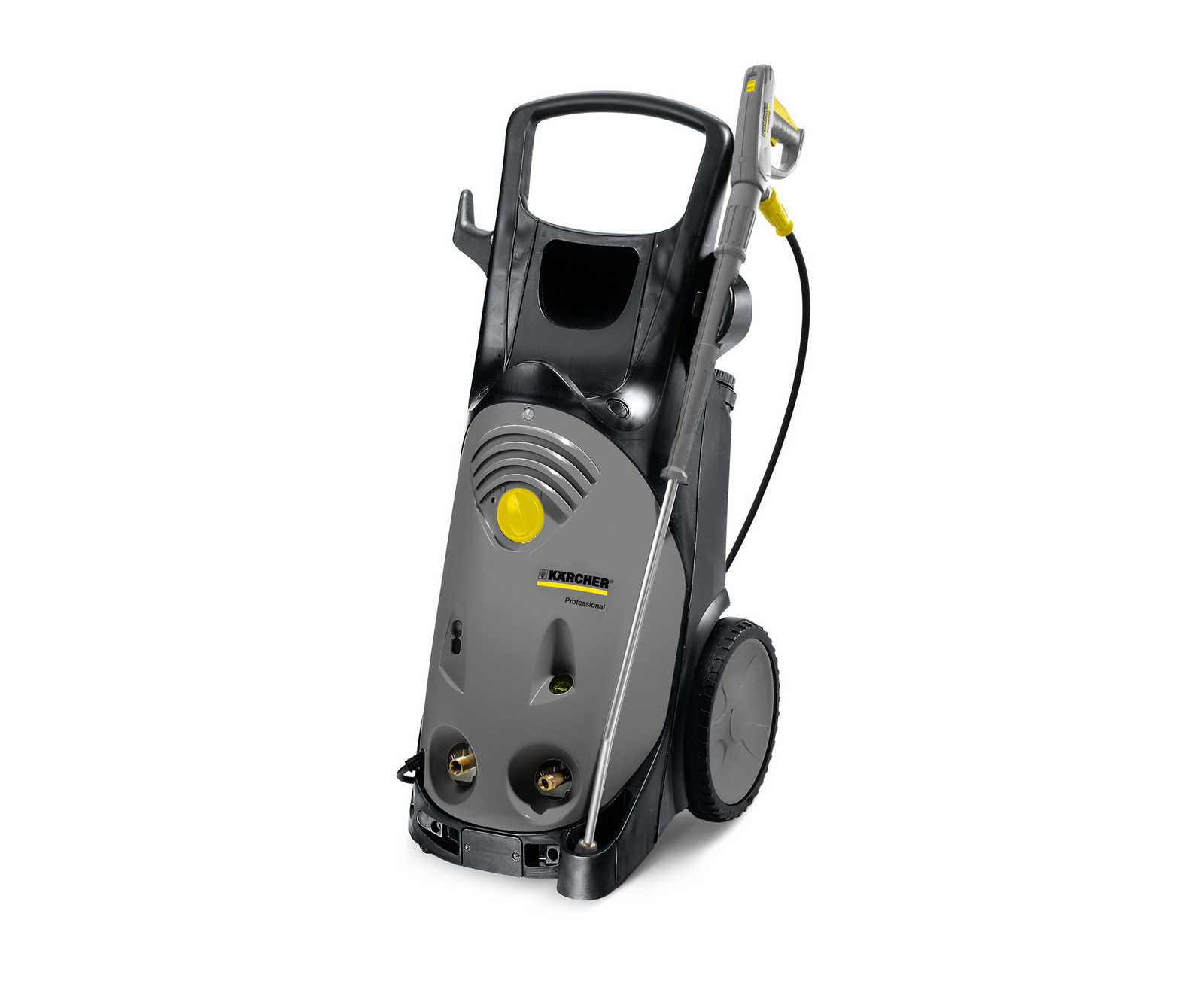

HD 10/25-4 S (part number: 1.286-902.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Water-cooled electric motor
4 / 8
Integrated electronics system
5 / 8
Pressure gauge
6 / 8
Large wheels
7 / 8

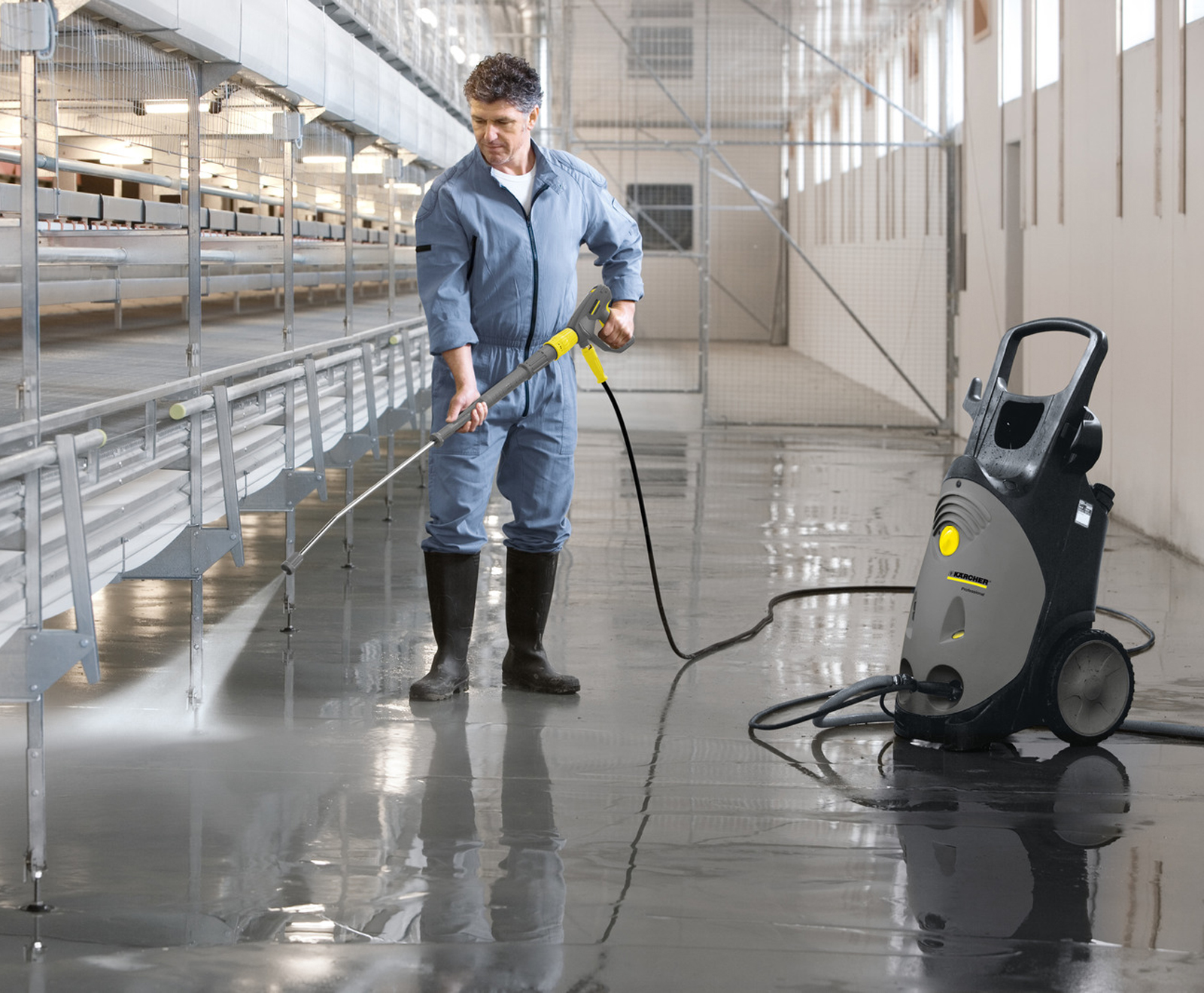

Use in agriculture industries
8 / 8

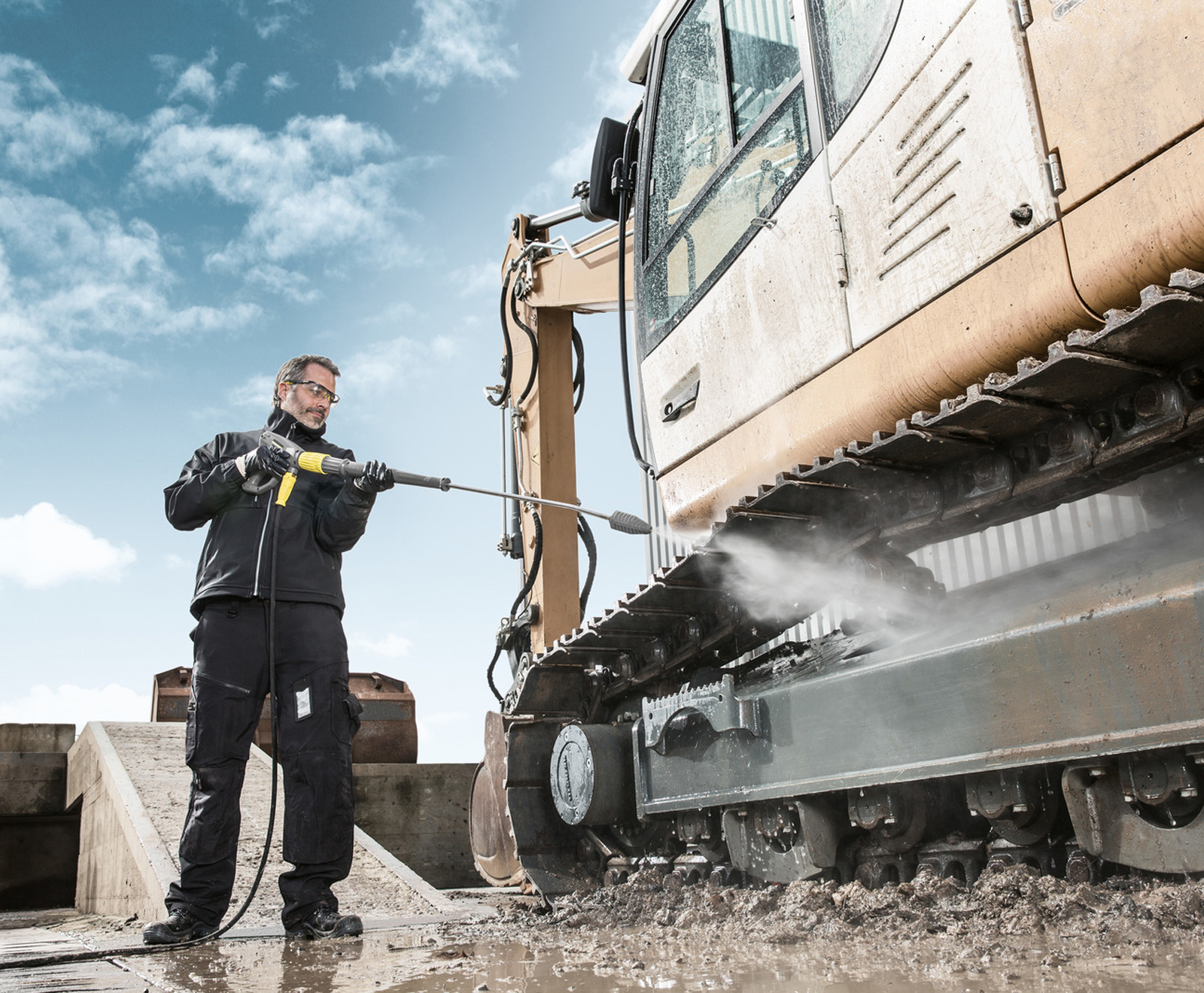

Use in construction sites

HD 10/25-4 S (part number: 1.286-902.0)

EASY!Force high-pressure gun

Water-cooled electric motor

Integrated electronics system

Pressure gauge

Large wheels

Use in agriculture industries

Use in construction sites








DESCRIPTION



The "HD 10/25-4 S" cold water high-pressure cleaner with three-phase drive offers a high level of convenience and the impressive power of 250 bar with a maximum flow volume of 1,000 l/h. Due to the upright construction style, the machine requires less space than conventional machines and is easier to manoeuvre, particularly around obstacles. This is also helped by the large, rubber-tyred wheels, which make the machine easy to transport, even on rough terrain. Accessories that are not being used can be stored in the separate nozzle compartment so that they do not get lost. New innovations guarantee effortless operation and time-saving set-up and dismantling: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. The 10/25-4 S has been designed for daily use in harsh conditions. The cleaning agent-resistant brass cylinder head and stainless steel pistons with ceramic sleeves ensure a long service life.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Proven Kärcher quality
4-pole water-cooled electric motor.
Robust brass cylinder head and ceramic piston.
Reinforced, unbreakable plastic chassis.


For increased safety
Integrated electronics system for machine monitoring.
Automatic switch-off in case of low voltage range or overvoltage.
Switches off in case of leaks or phase failure.


Outstanding mobility
Large rubber wheels for negotiating uneven surfaces, stairs and landings.
Proven sack truck principle for easy, ergonomic transport.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
3 / 400 / 50

Flow rate (l/h)
500 - 1000

Working pressure (bar/MPa)
30 - 250 / 3 - 25

Max. pressure (bar/MPa)
275 / 27.5

Connection load (kW)
9.2

Weight without accessories (kg)
68

Ship weight incl. packaging (kg)
74

Dimensions (L × W × H) (mm)
560 x 500 x 1090

Spray gun, EASY!Force Advanced
High-pressure hose, 10 m
Spray lance, 1050 mm
Power nozzle
4-pole, three-phase motor with air and water cooling
Pressure cut-off
Integrated water fine filter
Electronic motor protection with LED display
Oil level indicator
Servo Control
Brass water inlet



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions (dated Jul 2016)

Operating instructions (dated Apr 2019)

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Operating instructions   Safety instructions
