HD 6/15-4 Classic

Single-phase, compact, strong: the service-friendly "HD 6/15-4 Classic" high-pressure cleaner with a 600 l/h water flow, powerful crankshaft pump, ceramic piston and the latest sealing technology.





1 / 8

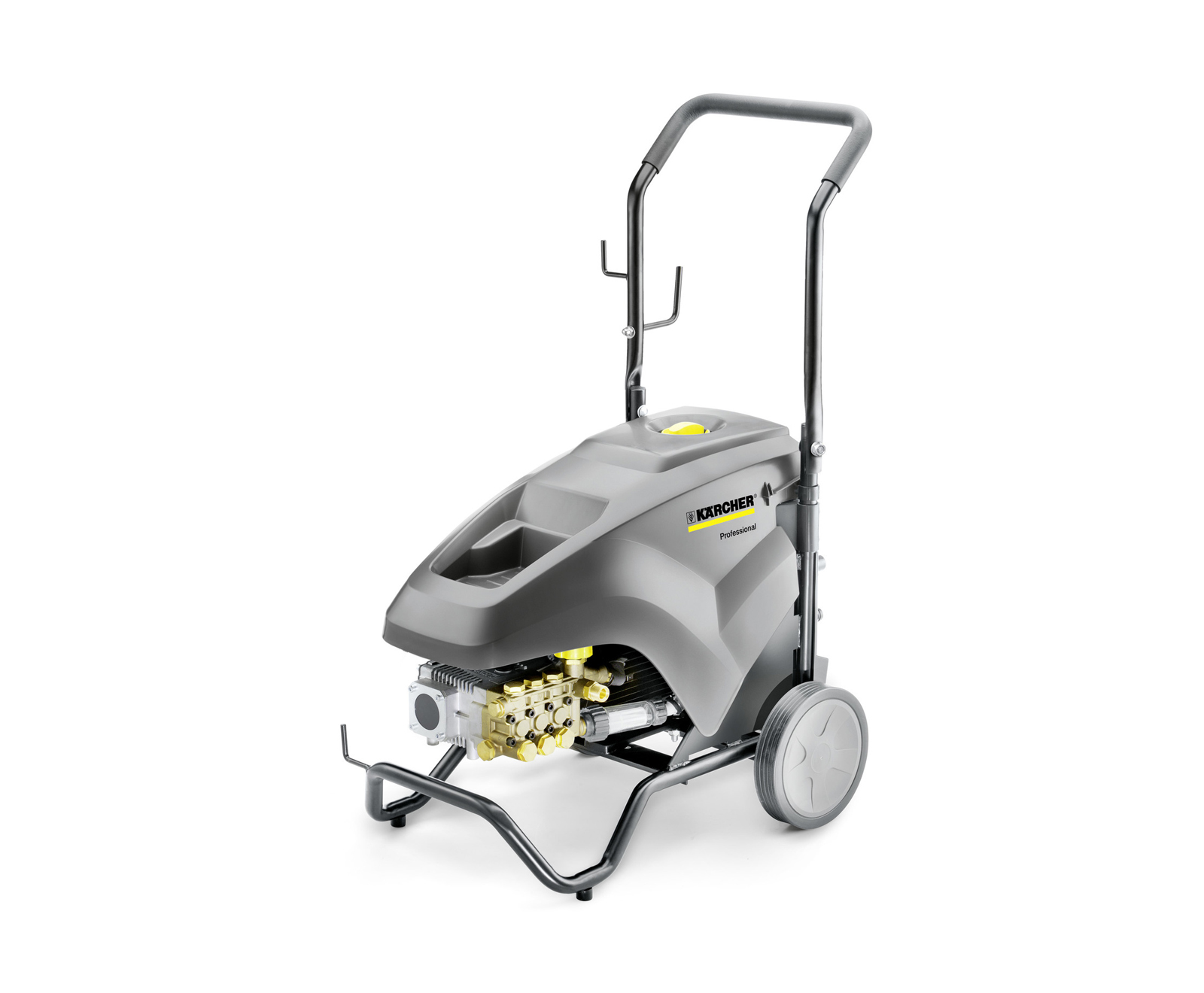

HD 6/15-4 Classic (part number: 1.367-306.0)
2 / 8

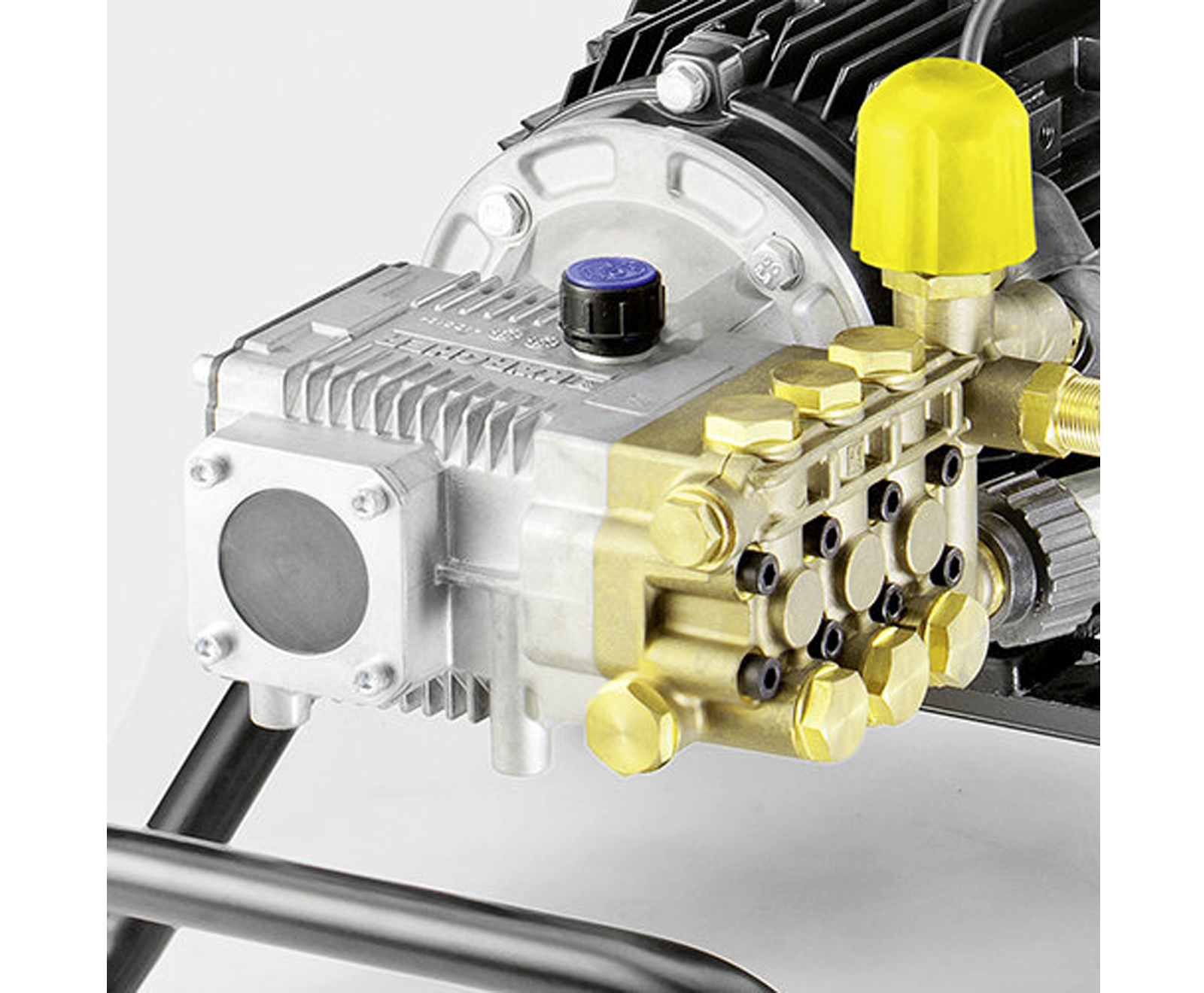

Large crankshafts and connecting rods
3 / 8

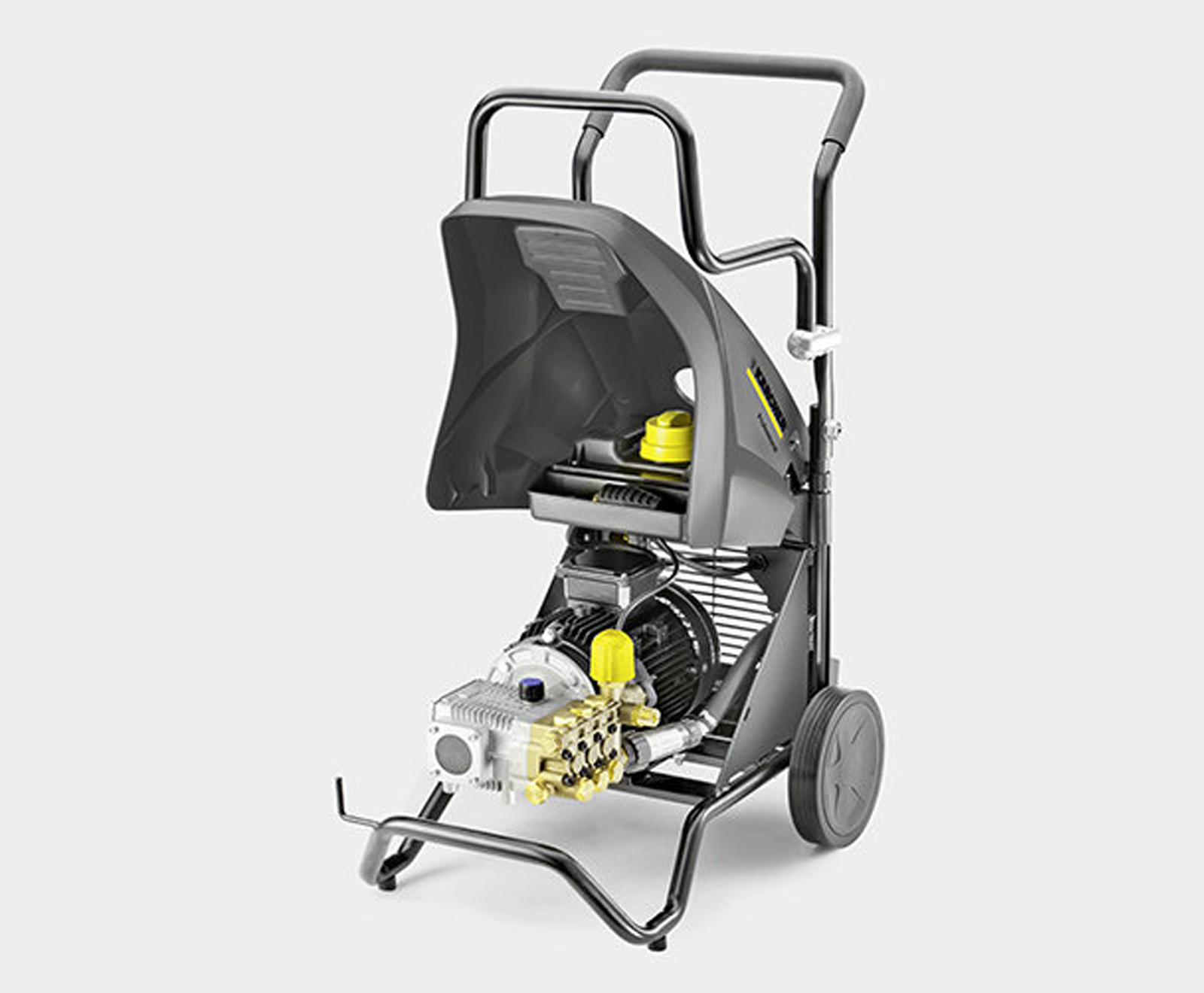

Wide-opening machine cover
4 / 8

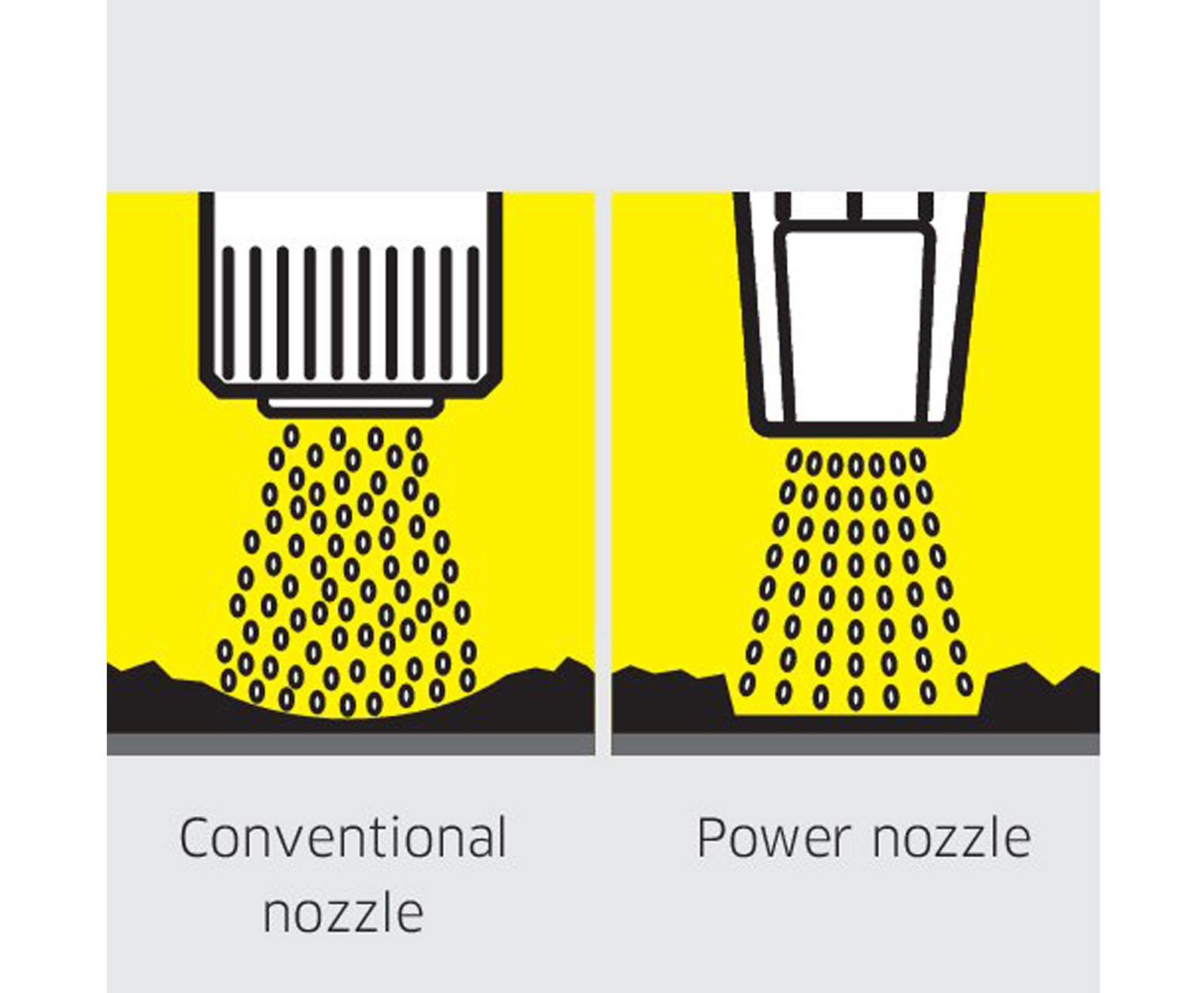

Power flat jet nozzle
5 / 8

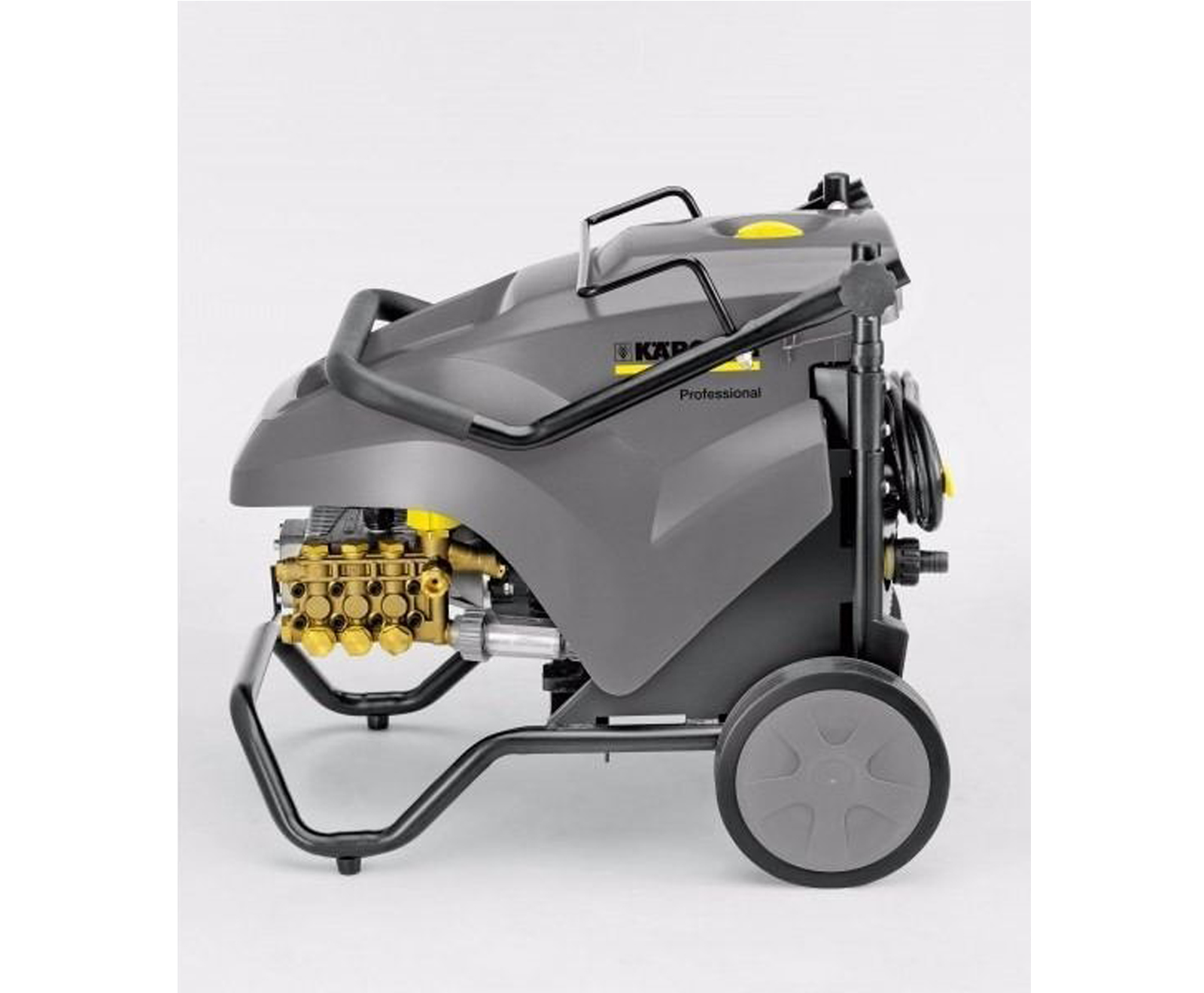

Foldable push handle
6 / 8

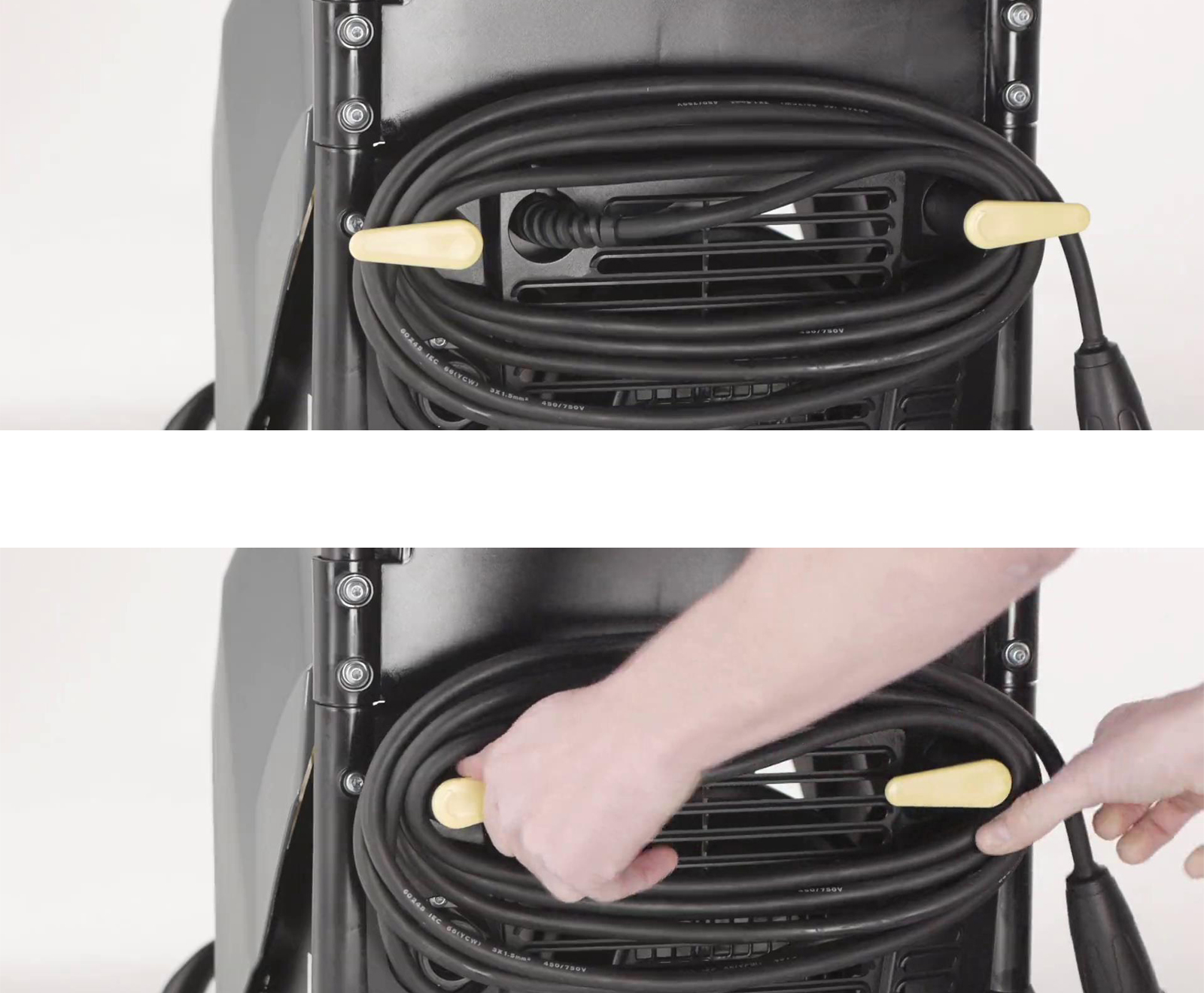

Rotating cable hooks
7 / 8

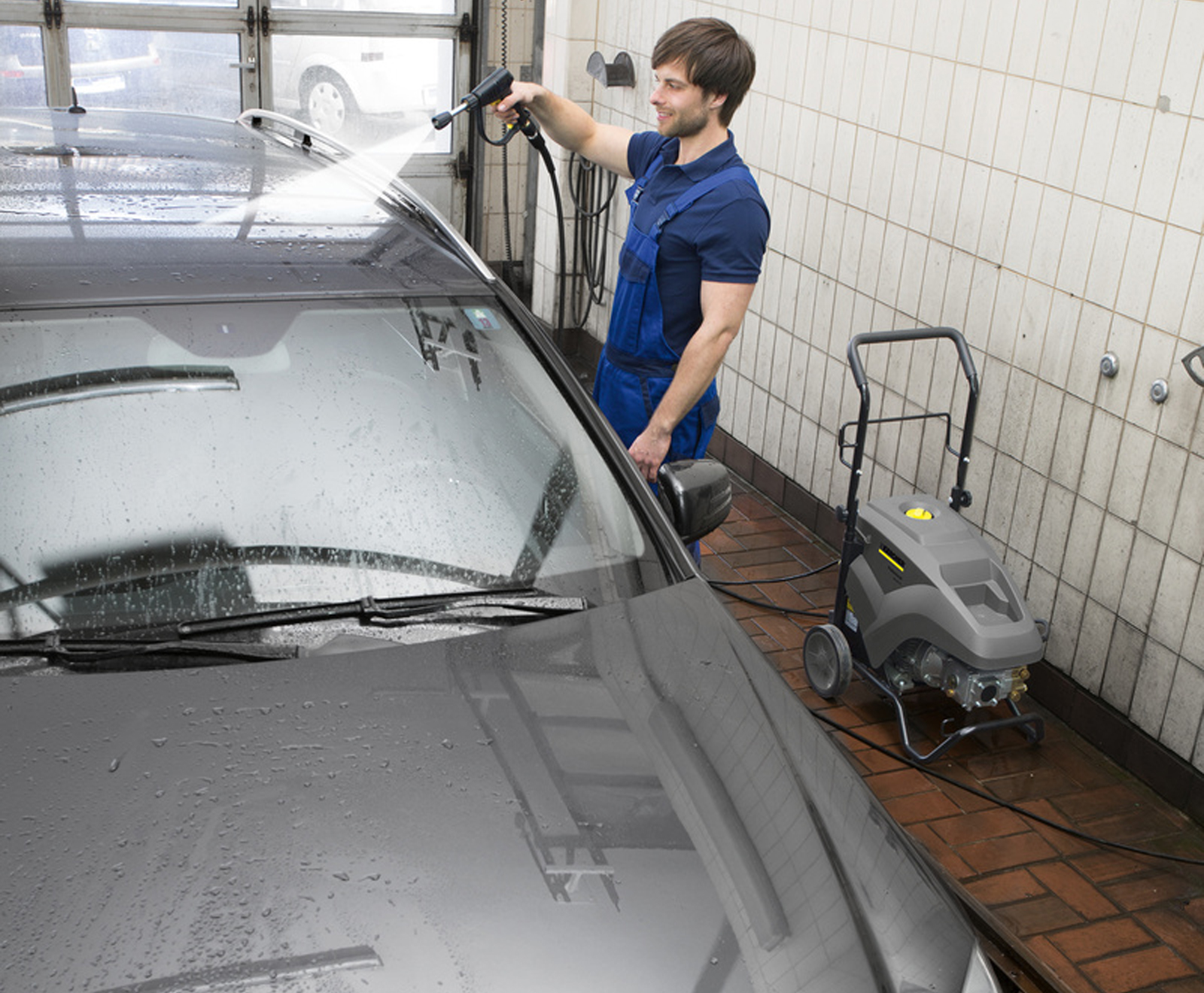

For cleaning cars
8 / 8

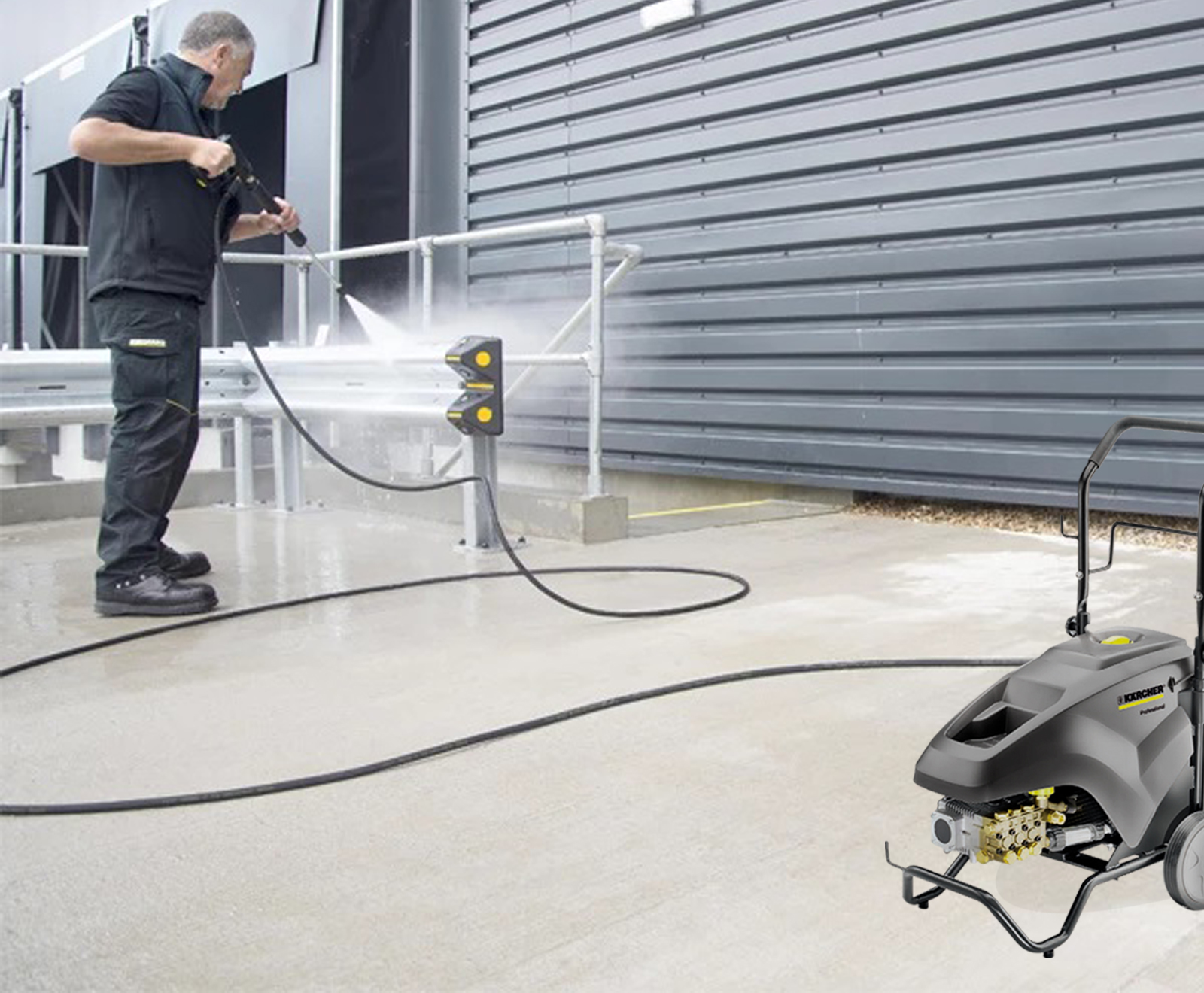

For cleaning outside areas

HD 6/15-4 Classic (part number: 1.367-306.0)

Large crankshafts and connecting rods

Wide-opening machine cover

Power flat jet nozzle

Foldable push handle

Rotating cable hooks

For cleaning cars

For cleaning outside areas








DESCRIPTION



Single-phase model with maximum power and a 600 l/h water flow: the user-friendly "HD 6/15-4 Classic" is synonymous with user-friendliness, compact dimensions, lightweight design and high cleaning efficiency as well as profitability. The high quality components built into our high-pressure cleaners allow for continuous use with impressive durability. The machine also scores with serviceability; all relevant parts are easily accessible. The impressive storage options offer enough space for the nozzle, lance and other accessories.



FEATURES AND BENEFITS



Durable and robust
Extra large crankshafts and connecting rods with robust ball bearings.
Ceramic pistons for reduced wear and tear.
High performance sealing packages for longer working times.


Especially easy to maintain
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
Large water fine filter for protecting the pump.
Integrated nozzle storage.


Improved cleaning performance
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
High area coverage and thorough dirt removal.


Excellent mobility
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 220 - 240 / 50

Flow rate (l/h)
450 - 600

Working pressure (bar/MPa)
70 - 150 / 7 - 15

Max. pressure (bar/MPa)
190 / 19

Connection load (kW)
3.4

Weight without accessories (kg)
52

Dimensions (L × W × H) (mm)
709 x 469 x 1000

Spray gun, standard
High-pressure hose, 10 m
Spray lance, 850 mm
Power nozzle
Anti-twist system (AVS)
Pressure cut-off
Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions



HD 6/15-4 Classic

Single-phase, compact, strong: the service-friendly "HD 6/15-4 Classic" high-pressure cleaner with a 600 l/h water flow, powerful crankshaft pump, ceramic piston and the latest sealing technology.





1 / 8
HD 6/15-4 Classic (part number: 1.367-306.0)
2 / 8
Large crankshafts and connecting rods
3 / 8
Wide-opening machine cover
4 / 8
Power flat jet nozzle
5 / 8
Foldable push handle
6 / 8
Rotating cable hooks
7 / 8
For cleaning cars
8 / 8
For cleaning outside areas

HD 6/15-4 Classic (part number: 1.367-306.0)

Large crankshafts and connecting rods

Wide-opening machine cover

Power flat jet nozzle

Foldable push handle

Rotating cable hooks

For cleaning cars

For cleaning outside areas








DESCRIPTION



Single-phase model with maximum power and a 600 l/h water flow: the user-friendly "HD 6/15-4 Classic" is synonymous with user-friendliness, compact dimensions, lightweight design and high cleaning efficiency as well as profitability. The high quality components built into our high-pressure cleaners allow for continuous use with impressive durability. The machine also scores with serviceability; all relevant parts are easily accessible. The impressive storage options offer enough space for the nozzle, lance and other accessories.



FEATURES AND BENEFITS



Durable and robust
Extra large crankshafts and connecting rods with robust ball bearings.
Ceramic pistons for reduced wear and tear.
High performance sealing packages for longer working times.


Especially easy to maintain
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
Large water fine filter for protecting the pump.
Integrated nozzle storage.


Improved cleaning performance
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
High area coverage and thorough dirt removal.
Separate park and transport position for the spray unit.


Excellent mobility
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 220 - 240 / 50

Flow rate (l/h)
450 - 600

Working pressure (bar/MPa)
70 - 150 / 7 - 15

Max. pressure (bar/MPa)
190 / 19

Connection load (kW)
3.4

Weight without accessories (kg)
52

Dimensions (L × W × H) (mm)
709 x 469 x 1000

Spray gun, standard
High-pressure hose, 10 m
Spray lance, 850 mm
Power nozzle
Anti-twist system (AVS)
Pressure cut-off
Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions



HD 6/15-4 Classic

Single-phase, compact, strong: the service-friendly "HD 6/15-4 Classic" high-pressure cleaner with a 600 l/h water flow, powerful crankshaft pump, ceramic piston and the latest sealing technology.





1 / 8
HD 6/15-4 Classic (part number: 1.367-306.0)
2 / 8
Large crankshafts and connecting rods
3 / 8
Wide-opening machine cover
4 / 8
Power flat jet nozzle
5 / 8
Foldable push handle
6 / 8
Rotating cable hooks
7 / 8
For cleaning cars
8 / 8
For cleaning outside areas







DESCRIPTION



Single-phase model with maximum power and a 600 l/h water flow: the user-friendly "HD 6/15-4 Classic" is synonymous with user-friendliness, compact dimensions, lightweight design and high cleaning efficiency as well as profitability. The high quality components built into our high-pressure cleaners allow for continuous use with impressive durability. The machine also scores with serviceability; all relevant parts are easily accessible. The impressive storage options offer enough space for the nozzle, lance and other accessories.



FEATURES AND BENEFITS



Durable and robust
Extra large crankshafts and connecting rods with robust ball bearings.
Ceramic pistons for reduced wear and tear.
High performance sealing packages for longer working times.


Especially easy to maintain
Wide-opening machine cover for easy access to all service and maintenance-relevant components.
Large water fine filter for protecting the pump.
Integrated nozzle storage.


Improved cleaning performance
Patented Kärcher power flat jet nozzles: up to 40 percent more impact force than conventional nozzles.
High area coverage and thorough dirt removal.
Separate park and transport position for the spray unit.


Excellent mobility
Large wheels and ergonomic push handle ensure optimal turning manoeuvrability and easy handling.
The foldable push handle enables space-saving storage.



SPECIFICATIONS



Technical data



Current type (Ph/V/Hz)
1 / 220 - 240 / 50


Flow rate (l/h)
450 - 600


Working pressure (bar/MPa)
70 - 150 / 7 - 15


Max. pressure (bar/MPa)
190 / 19


Connection load (kW)
3.4


Weight without accessories (kg)
52


Dimensions (L × W × H) (mm)
709 x 469 x 1000



Equipment



Spray gun, standard


High-pressure hose, 10 m


Spray lance, 850 mm


Power nozzle


Anti-twist system (AVS)


Pressure cut-off


Crankshaft pump with ceramic pistons



DOWNLOADS



Product information

Operating instructions

  Specification   Operating instructions


VIDEOS



  • Feature Demonstration



APPLICATION AREAS



Vehicle cleaning


Cleaning of outside areas


Workshop cleaning


Service station cleaning


Swimming pool cleaning
