HD 9/20-4 M

Mobile, unheated high-pressure cleaner with a 4-pole, low-speed three-phase motor and advanced equipment.





1 / 8

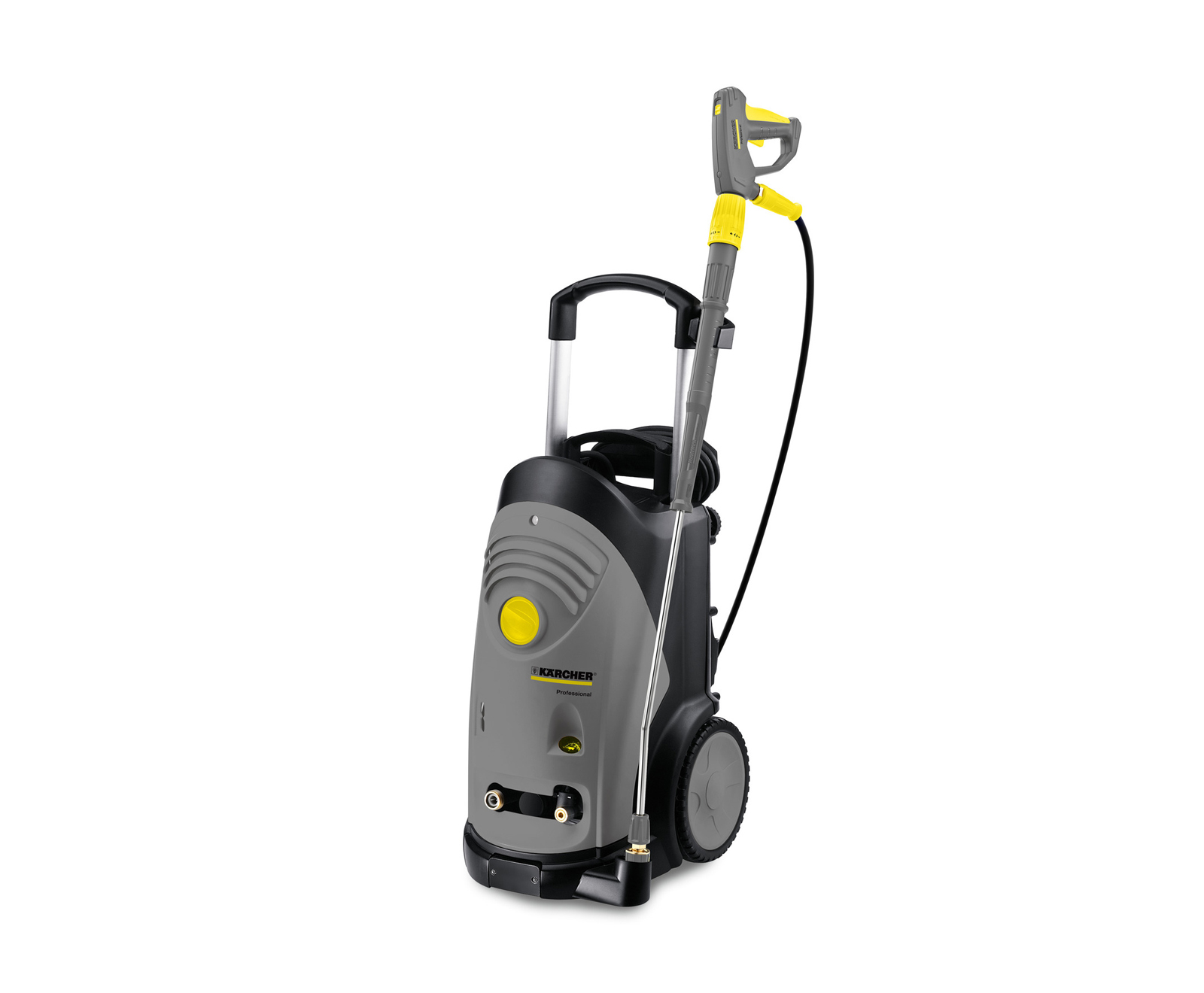

HD 9/20-4 M (part number: 1.524-924.0)
2 / 8
EASY!Force high-pressure gun
3 / 8

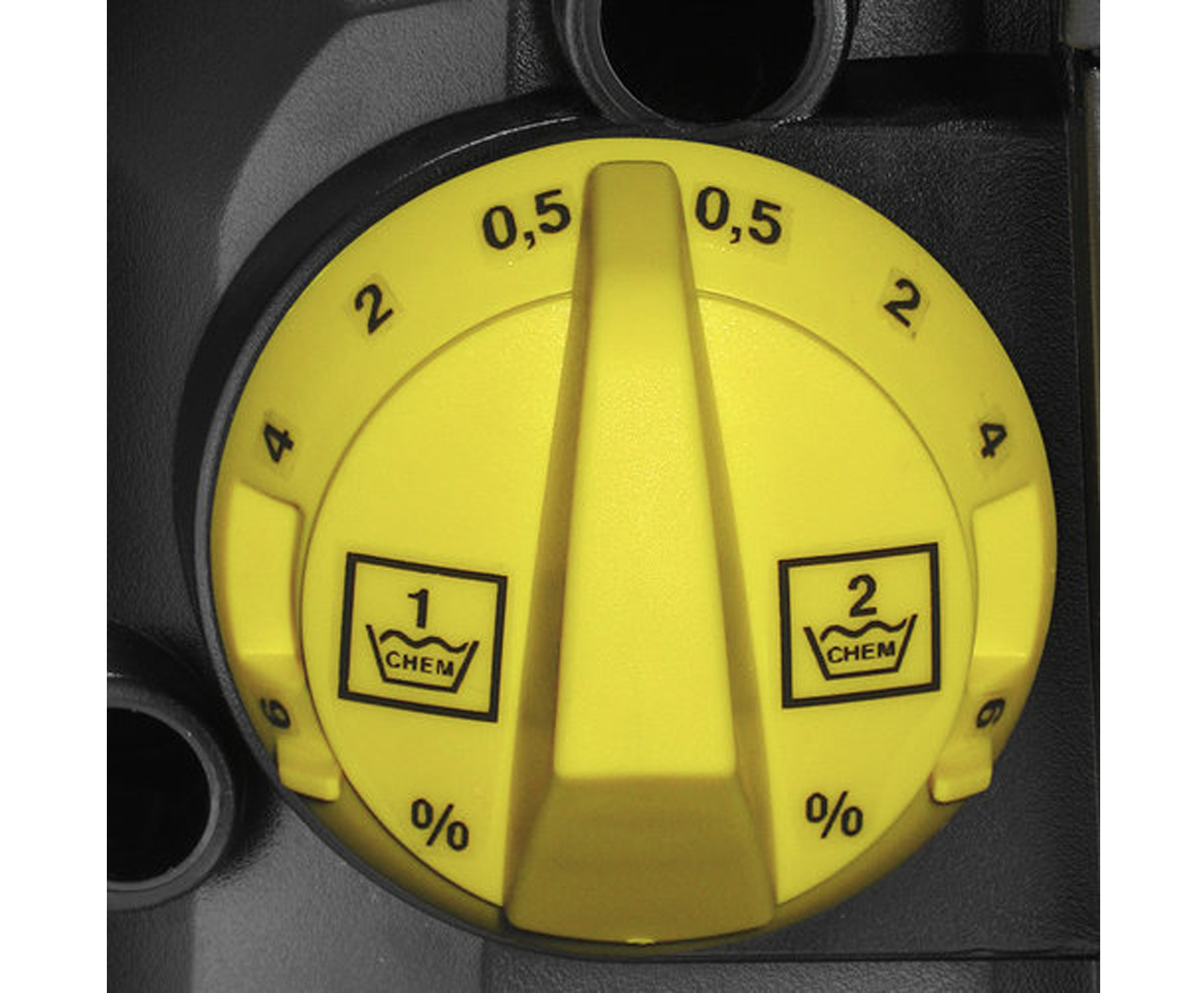

SwitchChem
4 / 8

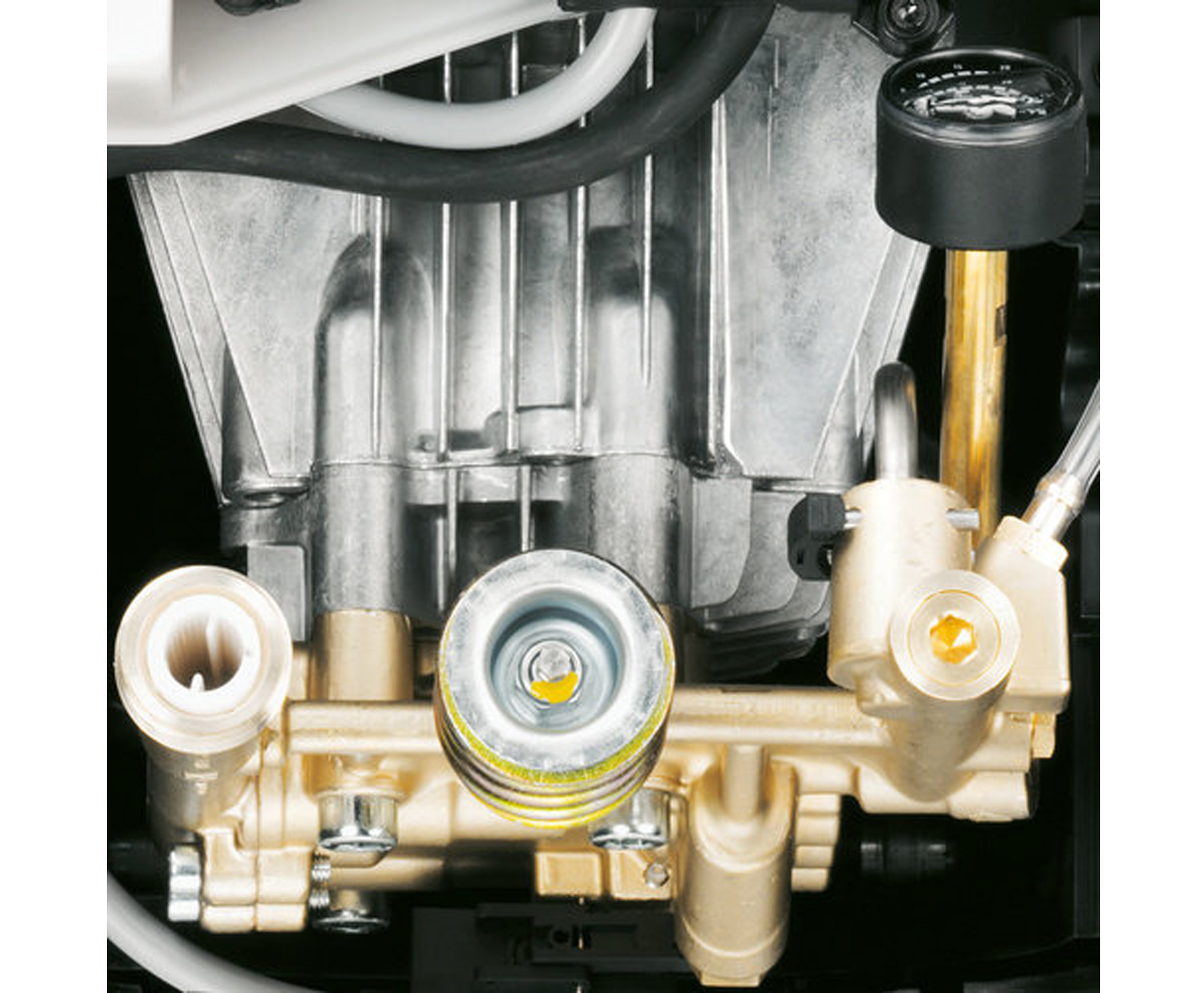

Air/water-cooled electric motor
5 / 8

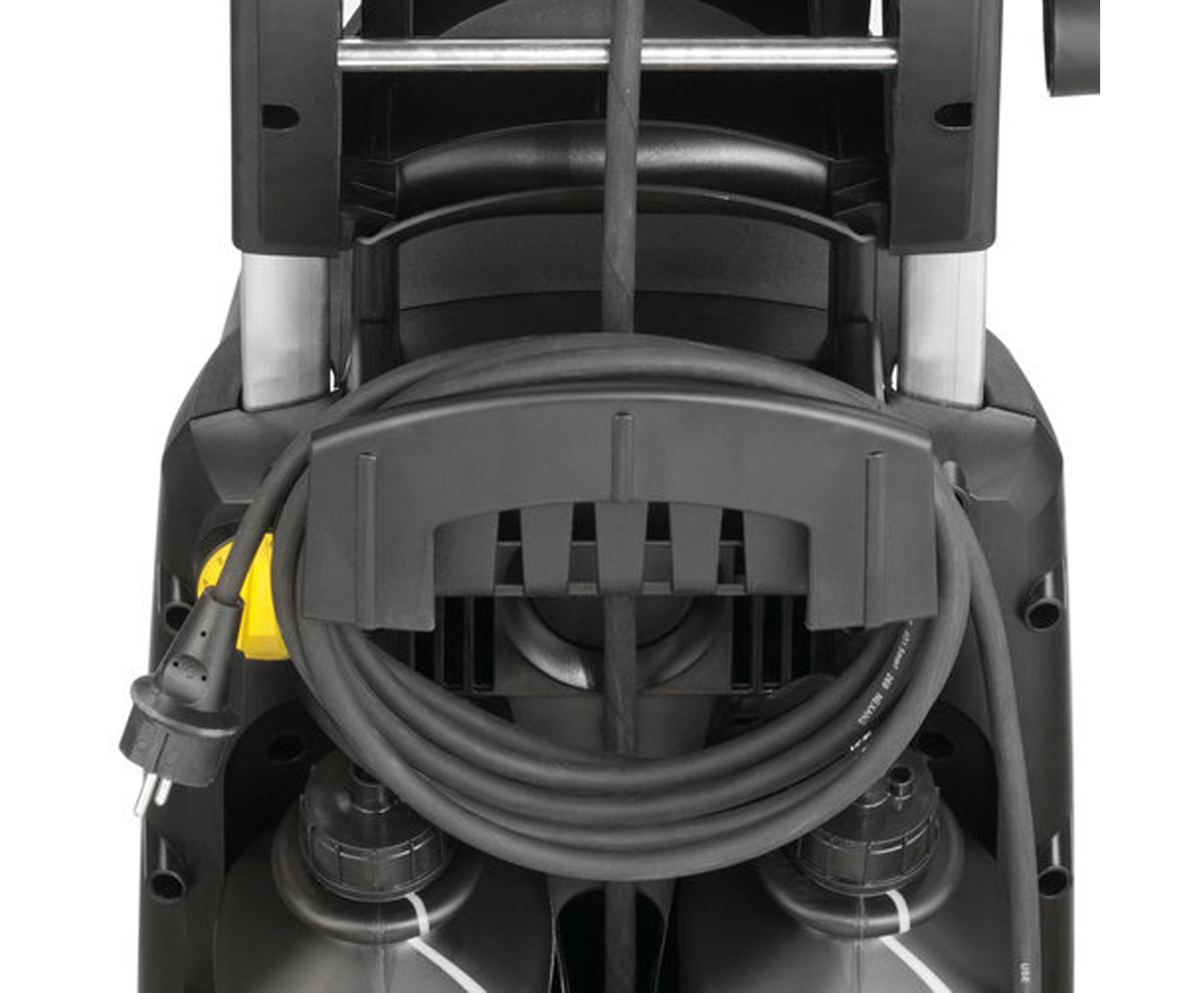

Power cord storage
6 / 8

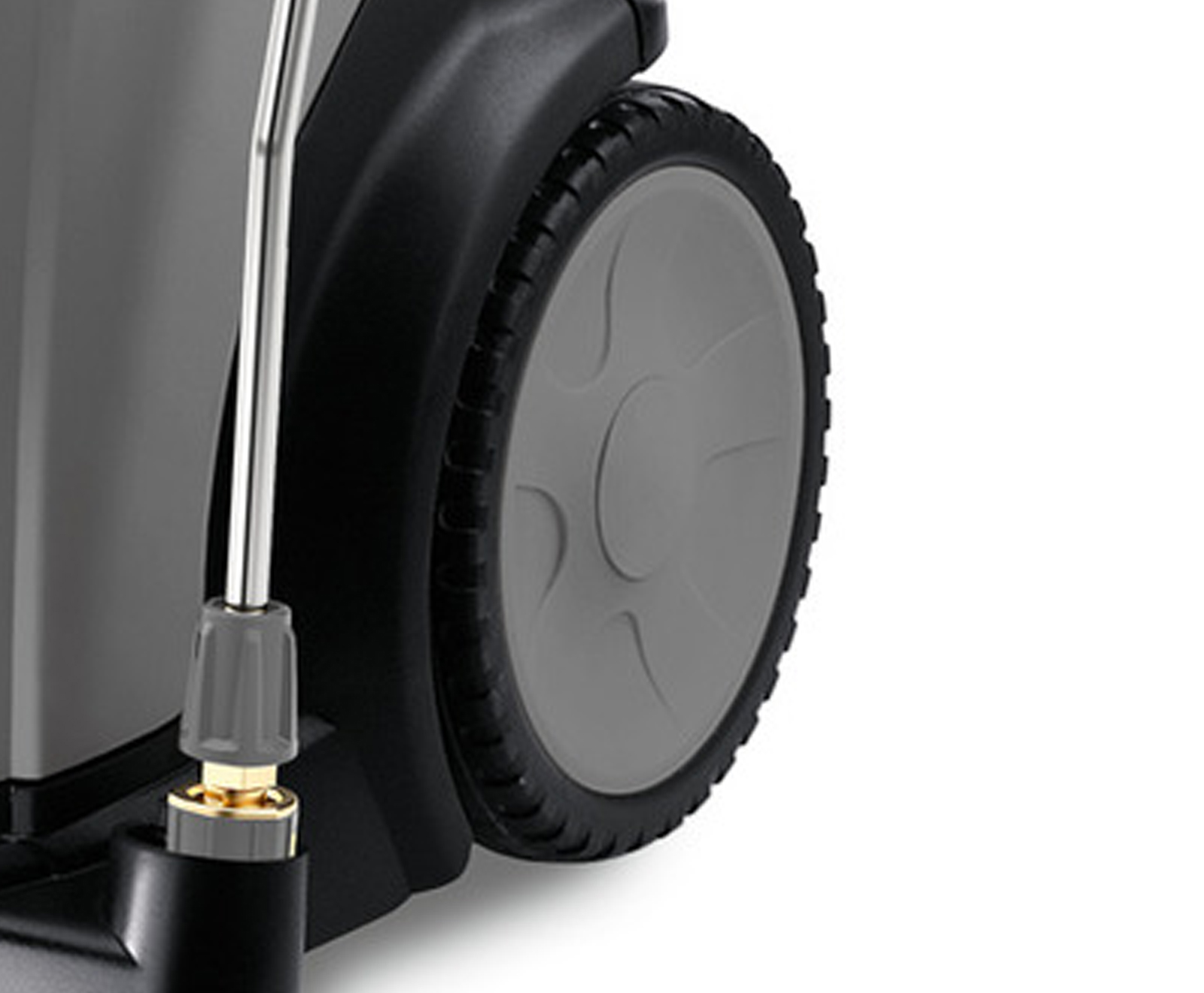

Large wheels
7 / 8

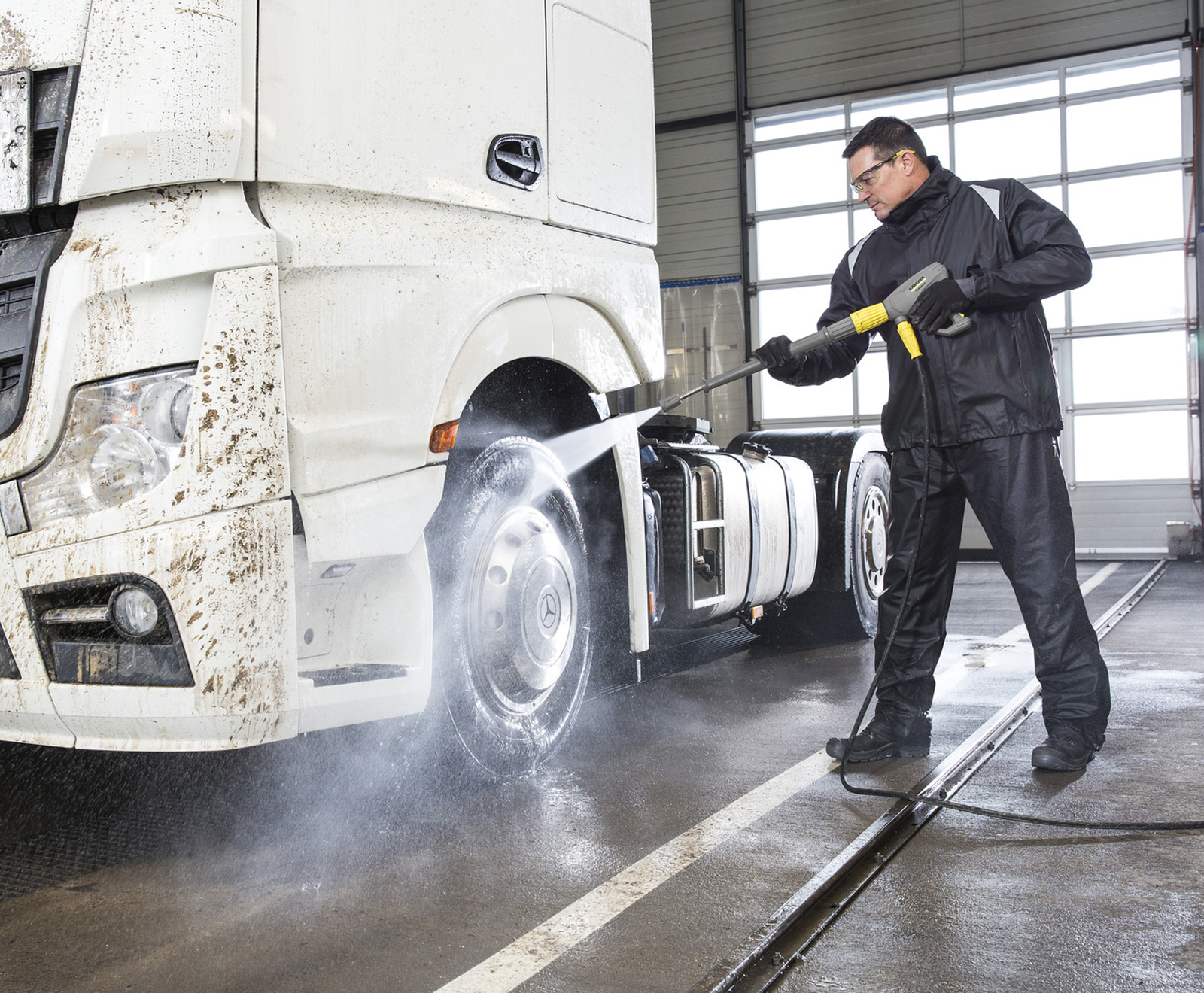

For washing tractor units
8 / 8

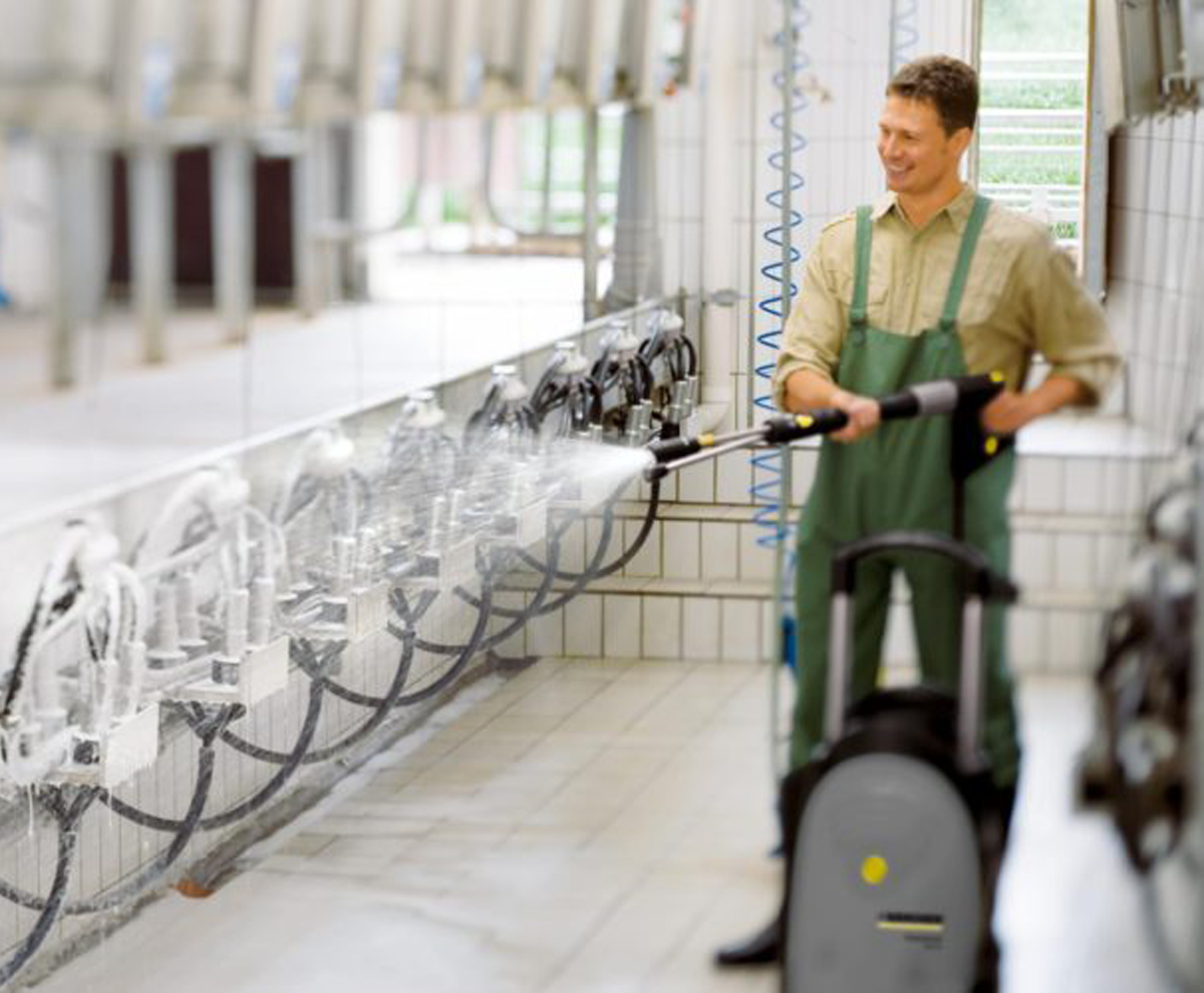

Use in agriculture industries

HD 9/20-4 M (part number: 1.524-924.0)

EASY!Force high-pressure gun

SwitchChem

Air/water-cooled electric motor

Power cord storage

Large wheels

For washing tractor units

Use in agriculture industries








DESCRIPTION



"HD 9/20-4 M": powerful, mobile high-pressure cleaner with a 4-pole, low-speed three-phase motor, pressure switch control, rotatable spray lance and pivoting pressure hose. Water flow and working pressure can be conveniently controlled via Servo Control directly on the spray gun. The aluminium push handle guarantees easy manoeuvrability and can also be used to store accessories. Thanks to a quick-change system, the SwitchChem cleaning agent dosing system allows long, flexible operating times, as well as the use of two different cleaning agents. The EASY!Force high-pressure gun and EASY!Lock quick-release fasteners ensure effortless working and time-saving set-up and dismantling: While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. The robust three-piston axial pump with brass cylinder head guarantees a long service life.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


SwitchChem
For precise and infinitely variable cleaning agent dosing.
Two-way dosing valve for switching between different cleaning agents.


Powerful and durable
Air/water-cooled electric motors for intensive use.
Four-pole low-speed electric motor.


Outstanding mobility
Large wheels for uneven surfaces.
Upright design for easy, ergonomic transport.
Integrated tilting aid at the rear of the unit.


Clever features
Power cord storage at the rear of the unit.
Integrated lance holder for transport.
Parking position for working interruptions.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
3 / 400 / 50

Flow rate (l/h)
460 - 900

Working pressure (bar/MPa)
40 - 200 / 4 - 20

Max. pressure (bar/MPa)
220 / 22

Connection load (kW)
7

Power cable (m)
5

Weight without accessories (kg)
54.2

Ship weight incl. packaging (kg)
59

Dimensions (L × W × H) (mm)
554 x 425 x 1000

Cleaning agent function, 2 x 2.5 L
Spray gun, EASY!Force
High-pressure hose, 10 m
Spray lance, 1050 mm
Triple nozzle (0°/25°/40°), Manual
ANTI!Twist
Pressure cut-off
Servo Control



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions (dated Jul 2016)

Operating instructions (dated Sep 2016)

Operating instructions (dated Apr 2019)

Safety instructions
