HD 5/12 C

Practical, mobile, versatile: the "HD 5/12 C" cold water high-pressure cleaner for vertical and horizontal operation. With accessory storage, brass cylinder head and automatic pressure relief.





1 / 8

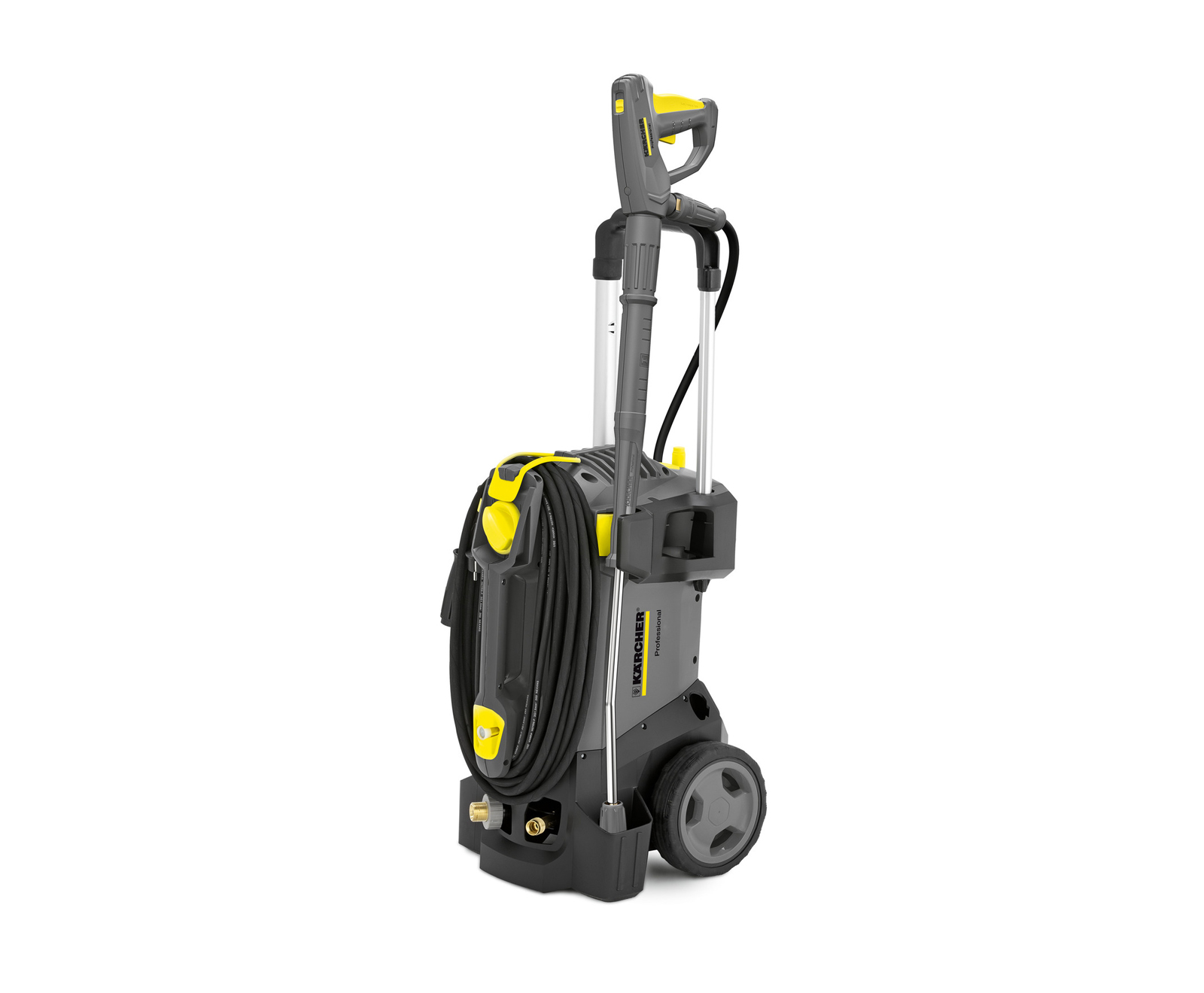

HD 5/12 C (part number: 1.520-900.0)
2 / 8
EASY!Force high-pressure gun
3 / 8
Integrated carrying handle
4 / 8
Horizontal operation possible
5 / 8
Excellent mobility
6 / 8
Rubber strap for fixing the pressure hose
7 / 8
For cleaning walls
8 / 8
For cleaning streets

HD 5/12 C (part number: 1.520-900.0)

EASY!Force high-pressure gun

Integrated carrying handle

Horizontal operation possible

Excellent mobility

Rubber strap for fixing the pressure hose

For cleaning walls

For cleaning streets








DESCRIPTION



The compact, lightweight and versatile "HD 5/12 C" cold water high-pressure cleaner offers outstanding mobility and is suitable for both vertical and horizontal operation. The machine is fitted with sophisticated accessory storage, and the brass cylinder head and automatic pressure relief ensure a long service life. Also included in the equipment package are the newly developed EASY!Force high-pressure gun and the EASY!Lock quick-release fasteners. While the EASY!Force high-pressure gun makes use of the recoil force of the high-pressure jet to reduce the holding force to zero, the EASY!Lock quick-release fasteners make handling five times faster than with conventional screw connections, without losing any robustness or longevity. Effortless operation and time-saving set-up and dismantling therefore feature as standard and are representative of the successful overall concept of the machine.



FEATURES AND BENEFITS



Save time and effort: EASY!Force high-pressure gun and EASY!Lock quick-release couplings.
Effortless operation at last: the EASY!Force high-pressure gun.
EASY!Lock quick-release couplings: durable, robust and five times faster than screws.


Mobility
The integrated carrying handle on the front of the machine enables easy loading and convenient transport.
Push handle can be retracted at the push of a button.
Compact construction style.


Flexibility
Vertical and horizontal operation possible.
The wheels are not on during horizontal operation. As such, the machine offers maximum stability.
Separate park and transport position for the spray unit.


Quality
The automatic pressure relief protects the components and extends the service life of the machine.
High-quality brass cylinder head.
Large, easy-to-reach water fine filter for protecting the pump against dirt particles in the water.


Accessory storage
Screw connection (M 18 × 1.5) for storing a Surface Cleaner directly on the machine.
Practical nozzle compartments for triple nozzle and rotary nozzle.
Rubber strap for fixing the pressure hose.



SPECIFICATIONS



Technical data

Equipment



Current type (Ph/V/Hz)
1 / 230 / 50

Flow rate (l/h)
500

Working pressure (bar/MPa)
120 / 12

Max. pressure (bar/MPa)
175 / 17.5

Connection load (kW)
2.5

Power cable (m)
5

Weight without accessories (kg)
24.4

Ship weight incl. packaging (kg)
26.8

Dimensions (L × W × H) (mm)
380 x 360 x 930

Spray gun, EASY!Force
High-pressure hose, 10 m
Spray lance, 840 mm
Triple nozzle (0°/25°/40°), Manual
Pressure cut-off



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions

Safety instructions

  Specification   Shortlist of spare parts   Operating instructions   Safety instructions
