K 2

The Kärcher "K 2" high-pressure cleaner with smooth-running wheels is ideal for occasional use and removal of normal dirt, e.g. bicycles, garden tools or garden furniture.





1 / 8

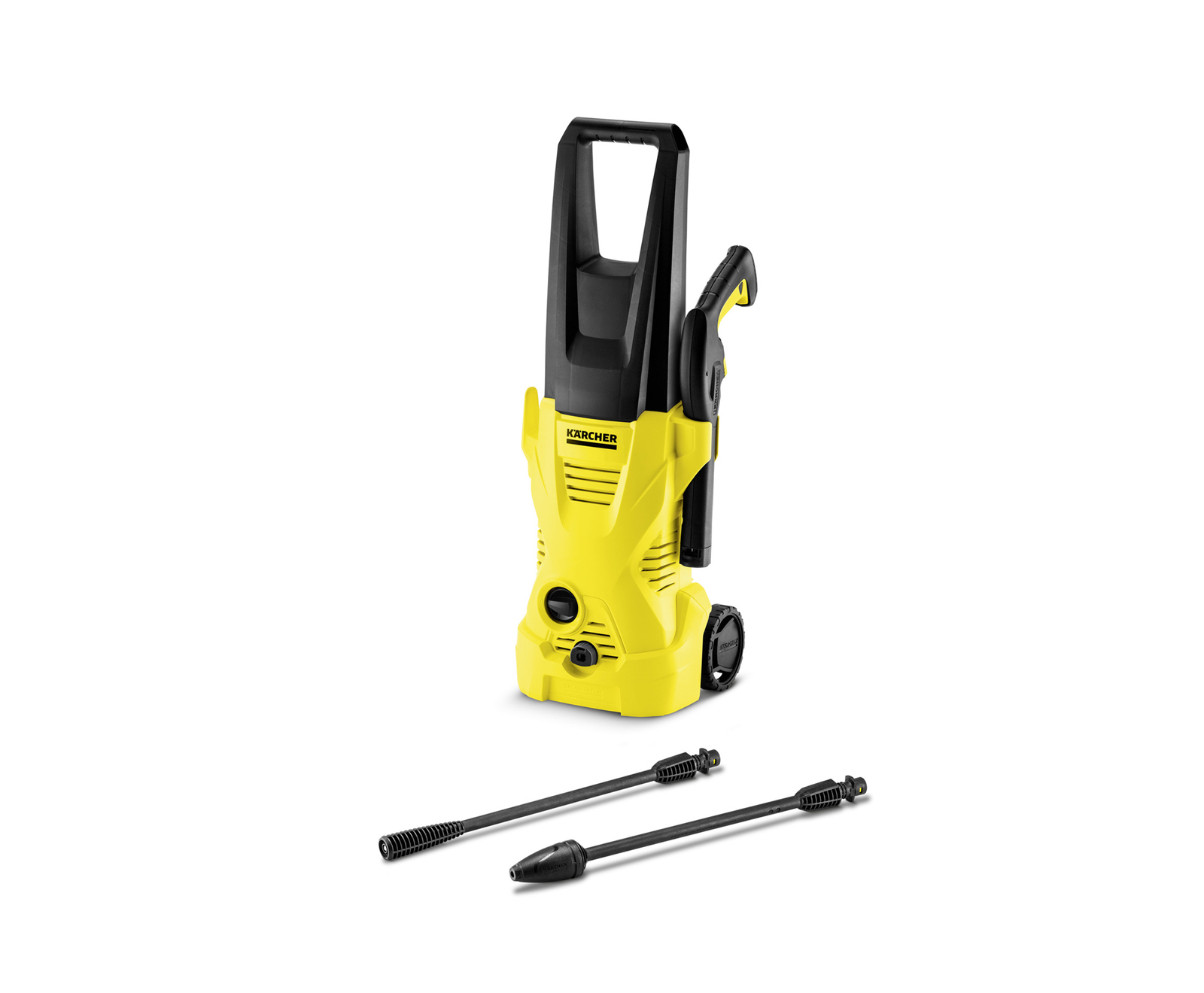

K 2 (part number: 1.673-220.0)
2 / 8

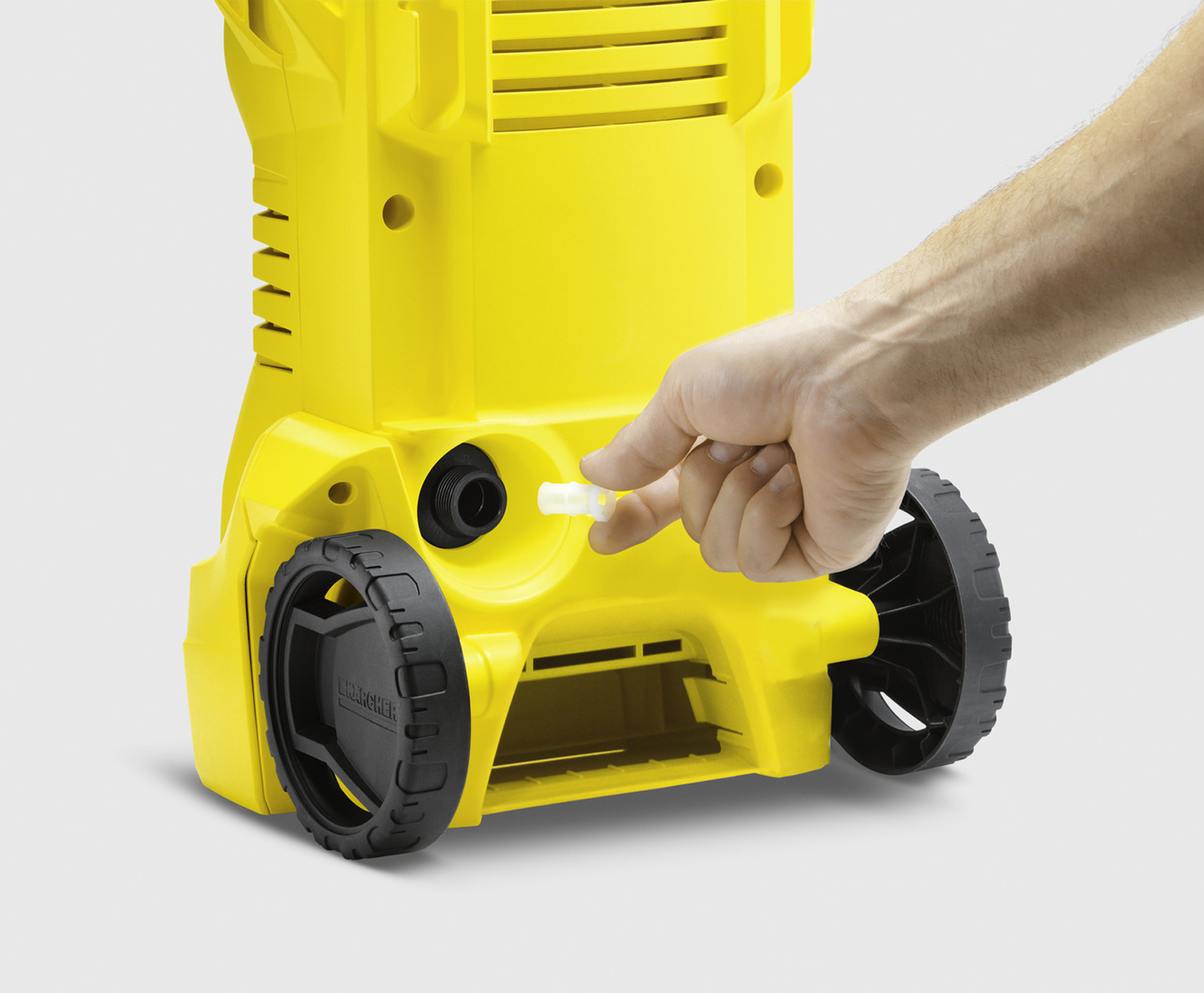

Water filter
3 / 8

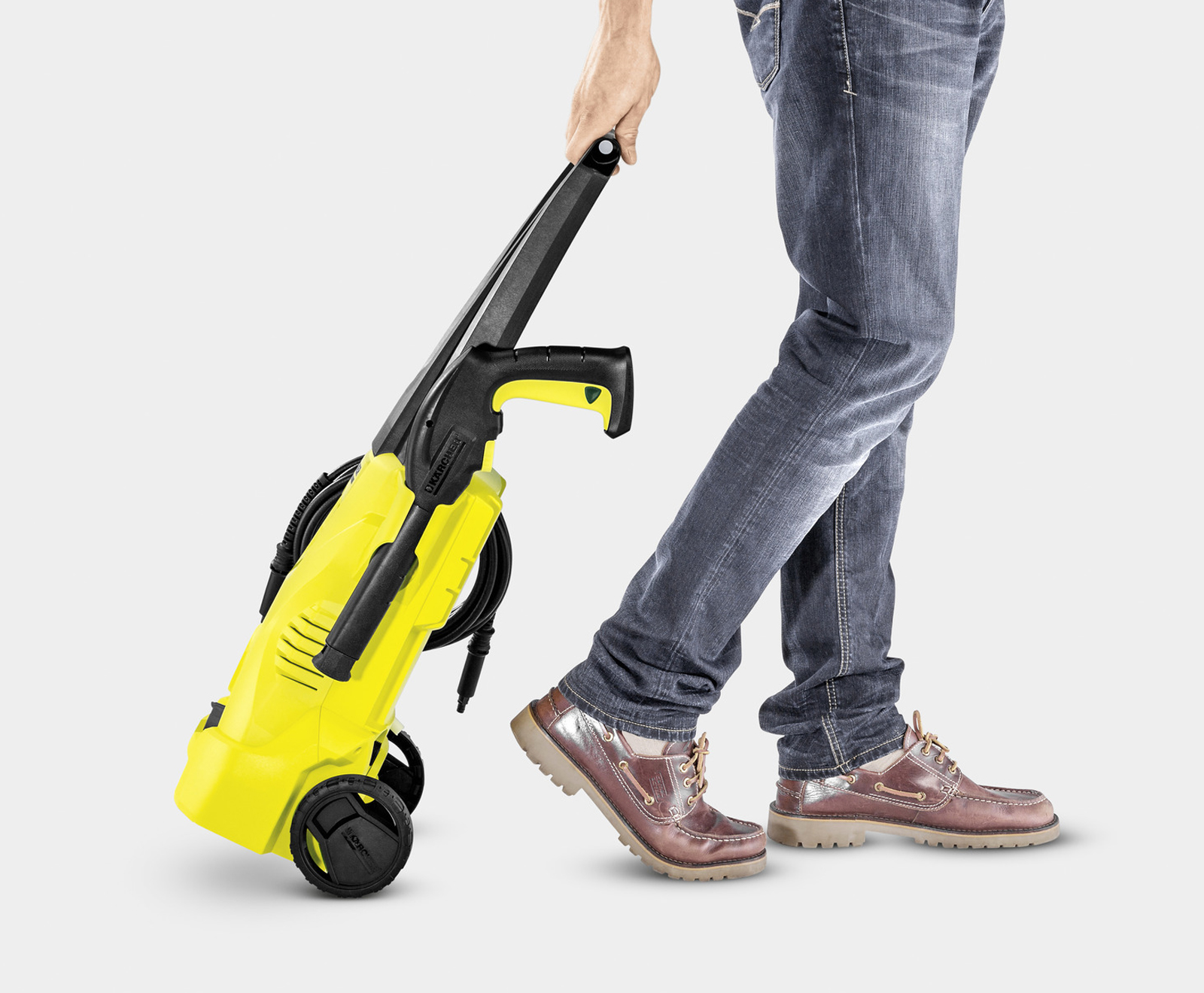

Two smooth-running wheels
4 / 8

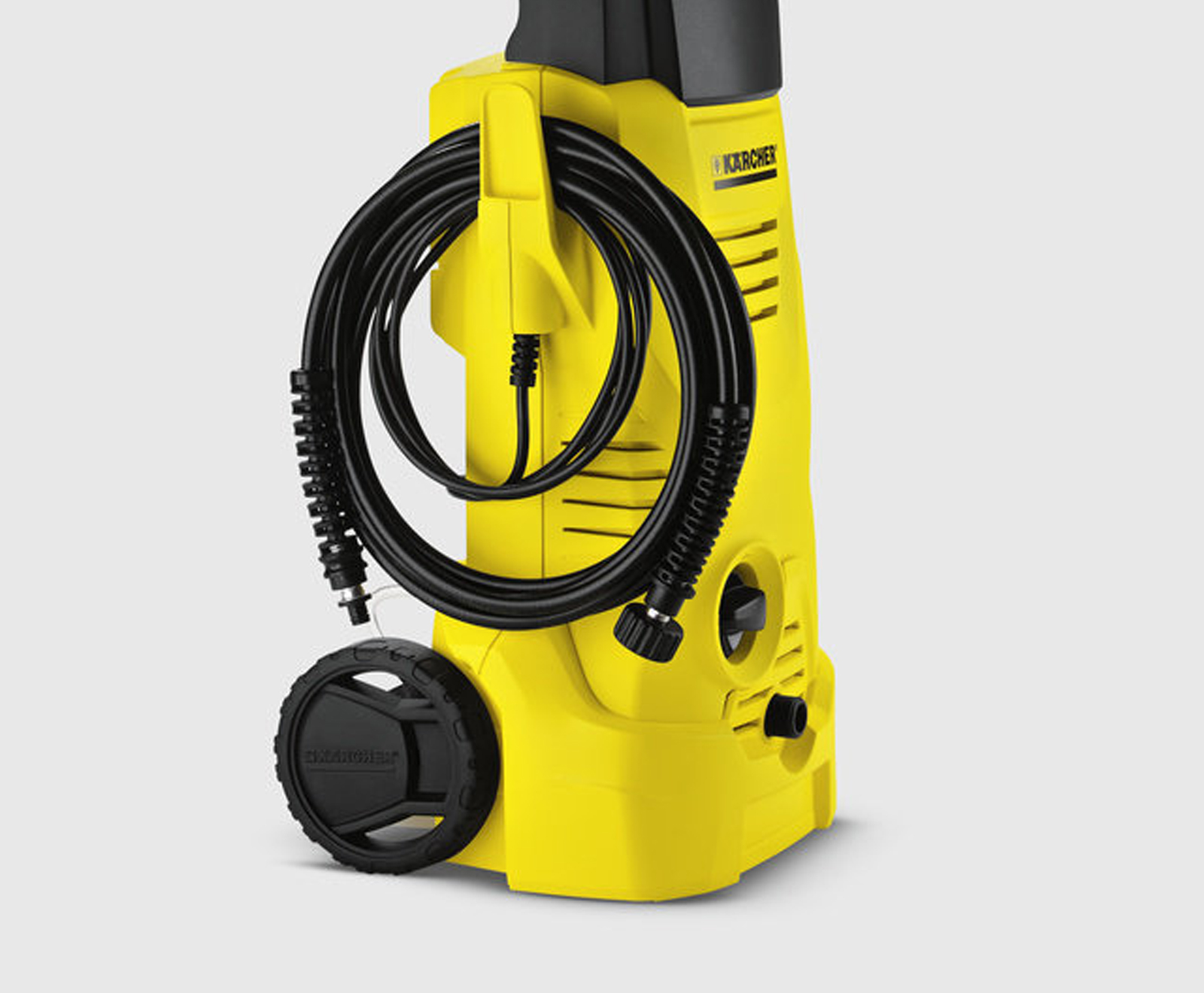

Hook for tidiness
5 / 8

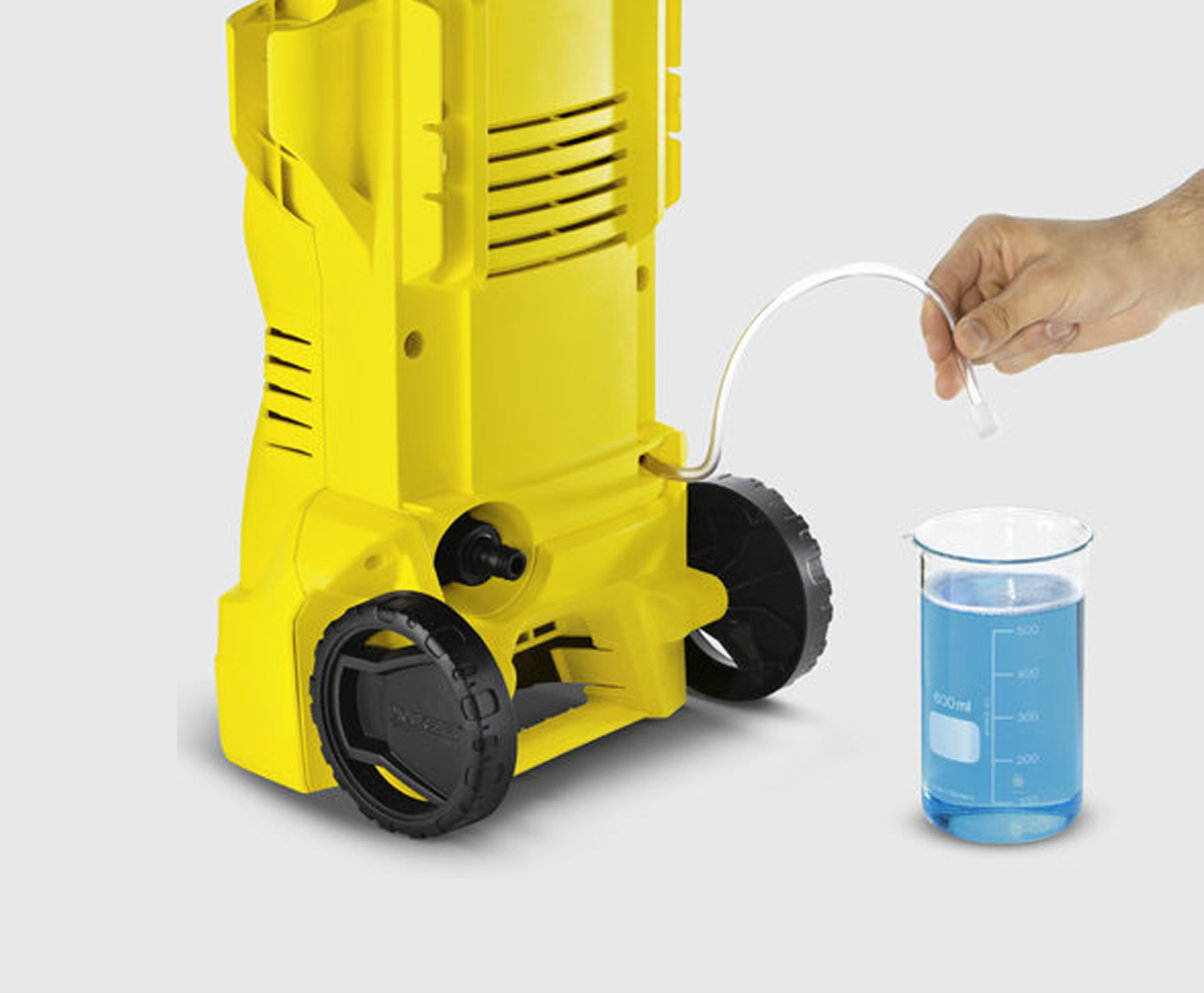

Suction mechanism for the detergent
6 / 8
Three-piston axial pump
7 / 8
For washing gardening tools
8 / 8
For washing balcony furniture

K 2 (part number: 1.673-220.0)

Water filter

Two smooth-running wheels

Hook for tidiness

Suction mechanism for the detergent

Three-piston axial pump

For washing gardening tools

For washing balcony furniture






Applications


  For cleaning bicycles. For cleaning gardening machines and tools. For cleaning garden, patio and balcony furniture.




DESCRIPTION



The "K 2" features two smooth-running wheels, trigger gun, 4 m high-pressure hose, spray lance, dirt blaster with rotating pencil jet for removing stubborn dirt and a water filter which protects the pump against the ingress of dirt particles. This high-pressure cleaner is intended for occasional use and removal of normal dirt around the home, e.g. for clening bicycles, garden tools or garden furniture.



FEATURES AND BENEFITS



Generous hook
Generous hook for tidy storage of the hose and cable directly on the device.


Suction mechanism
An integrated suction mechanism for the detergent is included.


Three-piston axial pump
Maintenance-free.


Safety valve
Safe protection from pressure overload.


Motor-stop function
Motor shutoff when trigger gun is closed.



SPECIFICATIONS



Technical data

Equipment



Current type (V/Hz)
220 - 240 / 50 - 60

Pressure (bar/MPa)
20 - max. 110 / 2 - max. 11

Flow rate (l/h)
max. 360

Max. inlet temperature (°C)
max. 40

Connection load (kW)
1.4

Area performance (m²/h)
20

Weight without accessories (kg)
4.8

Ship weight incl. packaging (kg)
6.1

Dimensions (L × W × H) (mm)
242 x 280 x 783

High-pressure gun, G 120 Q
One-jet spray lance
Dirt blaster
High-pressure hose, 4 m
Detergent application via, Suction
Integrated water filter
A3/4" garden hose connector adapter



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions (dated Nov 2012)

Operating instructions (dated Jan 2014)

Operating instructions (dated Dec 2014)

Operating instructions (dated Dec 2018)

  Specification   Shortlist of spare parts   Operating instructions   Operating instructions   Operating instructions   Operating instructions


Trigger gun instructions

Instructions before use

Safety instructions

  Trigger gun instructions   Instructions before use   Safety instructions



K 2

The Kärcher "K 2" high-pressure cleaner with smooth-running wheels is ideal for occasional use and removal of normal dirt, e.g. bicycles, garden tools or garden furniture.





1 / 8
K 2 (part number: 1.673-220.0)
2 / 8
Water filter
3 / 8
Two smooth-running wheels
4 / 8
Hook for tidiness
5 / 8
Suction mechanism for the detergent
6 / 8
Three-piston axial pump
7 / 8
For washing gardening tools
8 / 8
For washing balcony furniture

K 2 (part number: 1.673-220.0)

Water filter

Two smooth-running wheels

Hook for tidiness

Suction mechanism for the detergent

Three-piston axial pump

For washing gardening tools

For washing balcony furniture






Applications


  For cleaning bicycles. For cleaning gardening machines and tools. For cleaning garden, patio and balcony furniture.




DESCRIPTION



The "K 2" features two smooth-running wheels, trigger gun, 4 m high-pressure hose, spray lance, dirt blaster with rotating pencil jet for removing stubborn dirt and a water filter which protects the pump against the ingress of dirt particles. This high-pressure cleaner is intended for occasional use and removal of normal dirt around the home, e.g. for clening bicycles, garden tools or garden furniture.



FEATURES AND BENEFITS



Generous hook
Generous hook for tidy storage of the hose and cable directly on the device.


Suction mechanism
An integrated suction mechanism for the detergent is included.


Three-piston axial pump
Maintenance-free.


Safety valve
Safe protection from pressure overload.


Motor-stop function
Motor shutoff when trigger gun is closed.



SPECIFICATIONS



Technical data

Equipment



Current type (V/Hz)
220 - 240 / 50 - 60

Pressure (bar/MPa)
20 - max. 110 / 2 - max. 11

Flow rate (l/h)
max. 360

Max. inlet temperature (°C)
max. 40

Connection load (kW)
1.4

Area performance (m²/h)
20

Weight without accessories (kg)
4.8

Ship weight incl. packaging (kg)
6.1

Dimensions (L × W × H) (mm)
242 x 280 x 783

High-pressure gun, G 120 Q
One-jet spray lance
Dirt blaster
High-pressure hose, 4 m
Detergent application via, Suction
Integrated water filter
A3/4" garden hose connector adapter



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions (dated Nov 2012)

Operating instructions (dated Jan 2014)

Operating instructions (dated Dec 2014)

Operating instructions (dated Dec 2018)

  Specification   Shortlist of spare parts   Operating instructions   Operating instructions   Operating instructions   Operating instructions


Trigger gun instructions

Instructions before use

Safety instructions

  Trigger gun instructions   Instructions before use   Safety instructions



K 2

The Kärcher "K 2" high-pressure cleaner with smooth-running wheels is ideal for occasional use and removal of normal dirt, e.g. bicycles, garden tools or garden furniture.





1 / 8
K 2 (part number: 1.673-220.0)
2 / 8
Water filter
3 / 8
Two smooth-running wheels
4 / 8
Hook for tidiness
5 / 8
Suction mechanism for the detergent
6 / 8
Three-piston axial pump
7 / 8
For washing gardening tools
8 / 8
For washing balcony furniture





Applications


  For cleaning bicycles. For cleaning gardening machines and tools. For cleaning garden, patio and balcony furniture.




DESCRIPTION



The "K 2" features two smooth-running wheels, trigger gun, 4 m high-pressure hose, spray lance, dirt blaster with rotating pencil jet for removing stubborn dirt and a water filter which protects the pump against the ingress of dirt particles. This high-pressure cleaner is intended for occasional use and removal of normal dirt around the home, e.g. for clening bicycles, garden tools or garden furniture.



FEATURES AND BENEFITS



Generous hook
Generous hook for tidy storage of the hose and cable directly on the device.


Suction mechanism
An integrated suction mechanism for the detergent is included.


Three-piston axial pump
Maintenance-free.


Safety valve
Safe protection from pressure overload.


Motor-stop function
Motor shutoff when trigger gun is closed.



SPECIFICATIONS



Technical data



Current type (V/Hz)
220 - 240 / 50 - 60


Pressure (bar/MPa)
20 - max. 110 / 2 - max. 11


Flow rate (l/h)
max. 360


Max. inlet temperature (°C)
max. 40


Connection load (kW)
1.4


Area performance (m²/h)
20


Weight without accessories (kg)
4.8


Ship weight incl. packaging (kg)
6.1


Dimensions (L × W × H) (mm)
242 x 280 x 783



Equipment



High-pressure gun, G 120 Q


One-jet spray lance


Dirt blaster


High-pressure hose, 4 m


Detergent application via, Suction


Integrated water filter


A3/4" garden hose connector adapter



DOWNLOADS



Product information

Shortlist of spare parts

Operating instructions (dated Nov 2012)

  Specification   Shortlist of spare parts   Operating instructions


Operating instructions (dated Jan 2014)

Operating instructions (dated Dec 2014)

Operating instructions (dated Dec 2018)

  Operating instructions   Operating instructions   Operating instructions


Trigger gun instructions

Instructions before use

Safety instructions

  Trigger gun instructions   Instructions before use   Safety instructions


VIDEOS



  • Application Demonstration



APPLICATION AREAS



Bicycles


Gardening machines and tools


Patio and balcony
