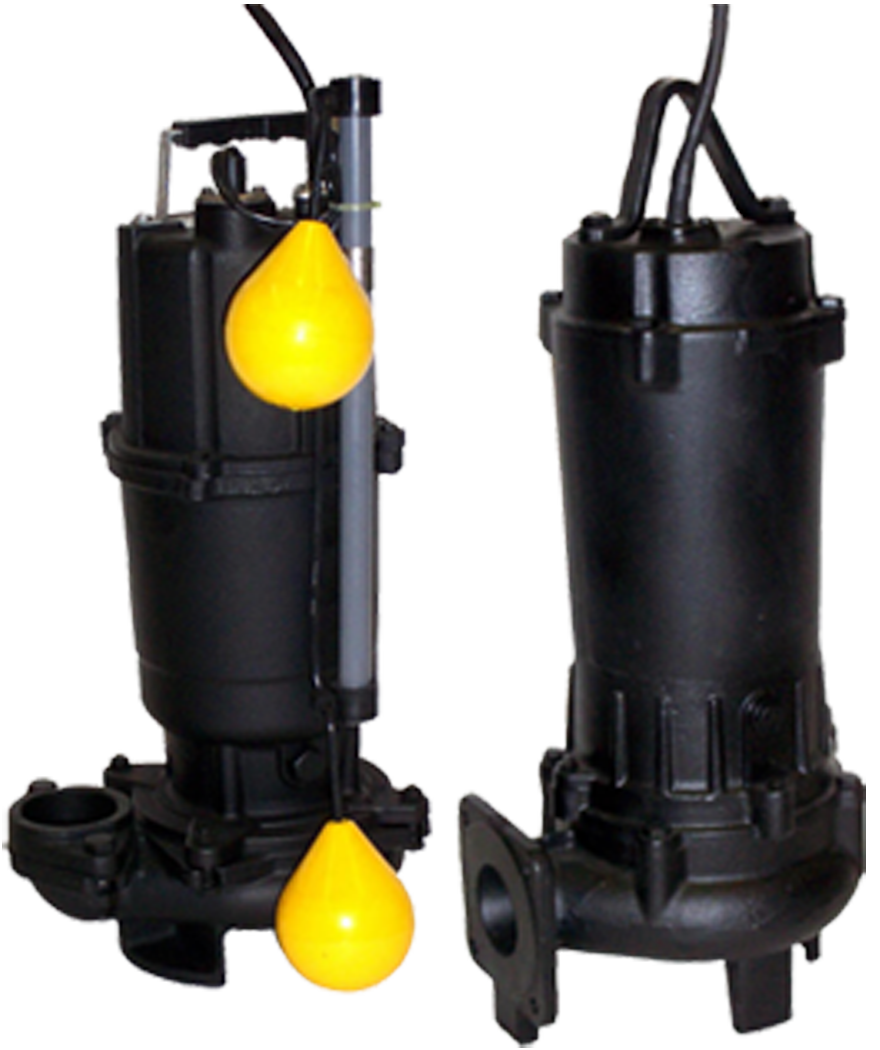

| The DVS submersible electric pump has a special semi-vortex construction. With this construction, the pump is less likelihood of clogging. The DVSA model is with automatic flow switch. |
| |
|
| Features |
| |
|
| • |
Anti-clogging with semi-vortex construction |
| • |
Built-in motor protection |
| • |
Double mechanical seal |
| • |
DVSA model permits automatic operation |
| • |
Parallel alternate operation possible with DVSA model |
| |
|
| Technical Data |
| |
|
| • |
Total head from 5.3 to 23 m |
| • |
Capacity from 6 to 60 m3/h |
| • |
Maximum liquid temperature 40 oC |
| • |
Maximum solid size passage: |
| |
| ▸ |
21 mm (50DVS) |
| ▸ |
33 mm (65DVS and 80DVS 1.5 kW) |
| ▸ |
41 mm (65DVS and 80DVS 2.2, 3.7 kW) |
|
| • |
Maximum length of fibrous bodies: |
| |
| ▸ |
100 mm (50 DVS) |
| ▸ |
200 mm (65DVS and 80DVS 1.5 kW) |
| ▸ |
245 mm (65DVS and 80DVS 2.2, 3.7 kW) |
|
| |
|
| Applications |
| |
|
| • |
Ideal for waste water application containing soft or fibrous solids |
| • |
Industrial waste water drainage |
| • |
Septic effluent |
| • |
Miscellaneous drainage |
| |
|
| |
|
